AOLISHENG 265lbs Camper Drawer Slides Side Mounted Heavy Duty Drawer Slides With Lock 1 Pair – D2053
| Weight | N/A |
|---|
Specifications
| Type | 53 mm Wide Heavy-Duty Slide Rail |
|---|---|
| Material | Q235 Cold-rolled Steel |
| Mounting | Side-mounted |
| Load Capacity | 120 kg (≈265 lb) |

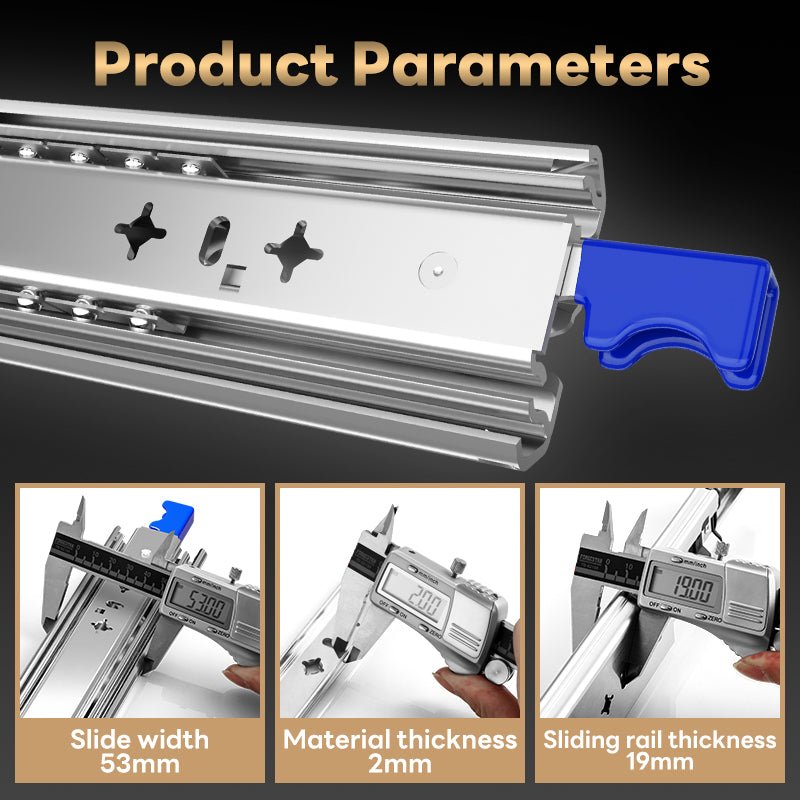

| Width | 53 mm |
| Installation Thickness | 19 ± 0.5 mm |
| Material Thickness | 2.0 × 2.0 × 2.0 mm |
| Surface Treatment | Blue Zinc Plating |
| Available Lengths | 10 – 80 inch |
Specifications and dimensions per ALS 2026 product catalogue.
AOLISHENG 2053 Series Specifications
Heavy-duty full-extension slide rail
| Load Capacity | 265 lb / 120 kg |
|---|---|
| Installation Method | Side-mounted |
| Extension | Full-extension |
| Material | Cold-rolled steel / stainless steel variants |
| Features | Heavy-duty, soft-close, locking and stainless-steel options |
| Typical Use | Toolboxes, workbenches, RV and camper storage |
Source: Verified from live product listing
Available sizes and order codes
Every length below is a stocked variation of AOLISHENG 265lbs Camper Drawer Slides Side Mounted Heavy Duty Drawer Slides With Lock 1 Pair – D2053. Sold as one pair (left plus right). Choose a size to open it with the length pre-selected.
| Size | Order code | Availability | Price | |
|---|---|---|---|---|
| 12" | GZXDQ5320A1Y12 | In stock | Login to see prices | View size |
| 14" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 16" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 18" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 20" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 22" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 24" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 26" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 28" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 30" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 32" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 34" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 36" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 38" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
| 40" | 6100651933876-aolisheng-265lb-camper-side-mounted-heavy-duty-locking-drawer-slides-d2053 | In stock | Login to see prices | View size |
Need a length that is not listed? We produce custom lengths and hole patterns for OEM and ODM runs. Send your dimensions for a quote.
Related AOLISHENG slides
Guides for this model
Choosing between series?
Read the drawer slide buying guide for a side-by-side on load rating, extension type, mount style and material, including a quick-pick table by application.
This slide belongs to
Heavy Duty Drawer Slides With Lock
265 lb Load Capacity | Lockable | Full Extension | Detachable | Side Mount

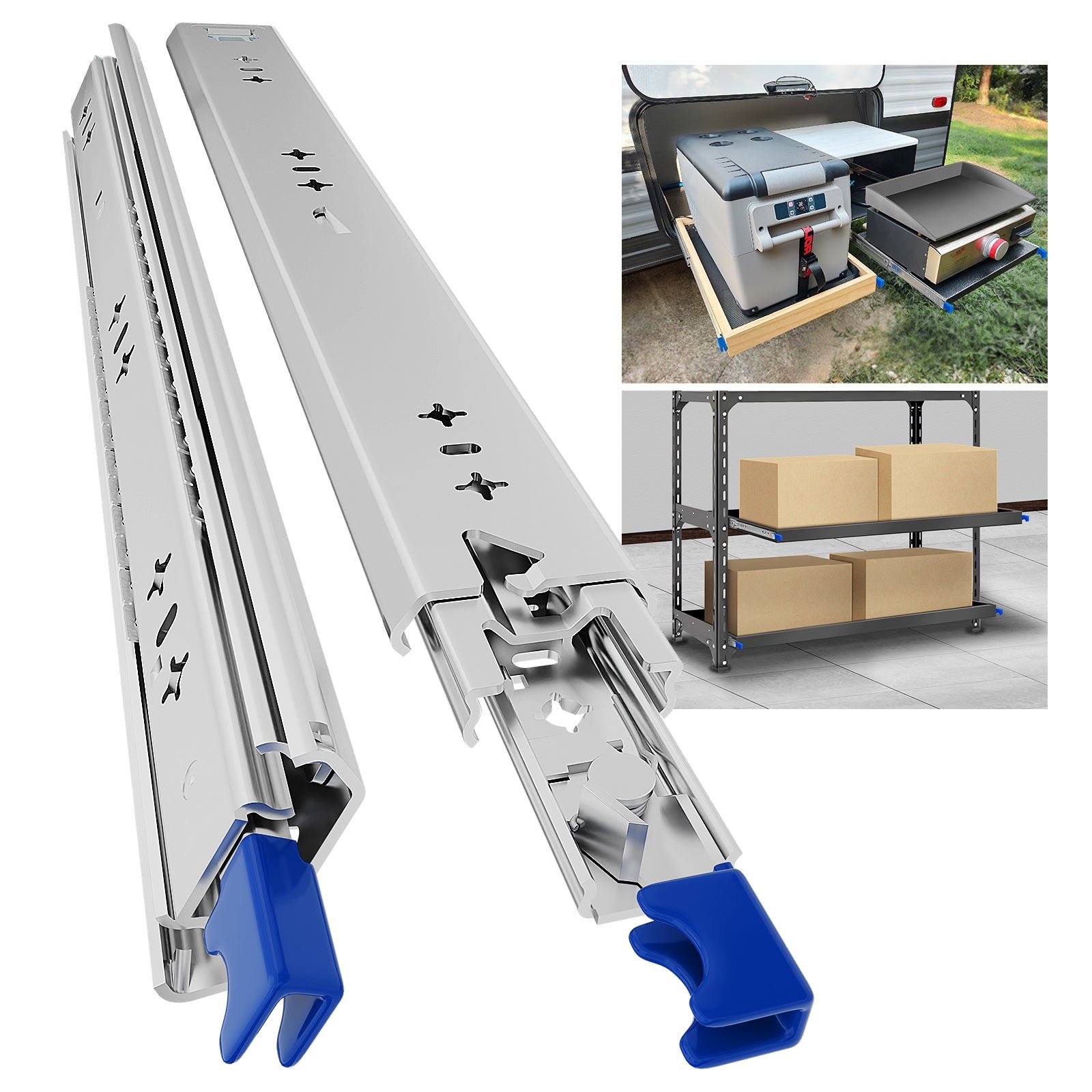

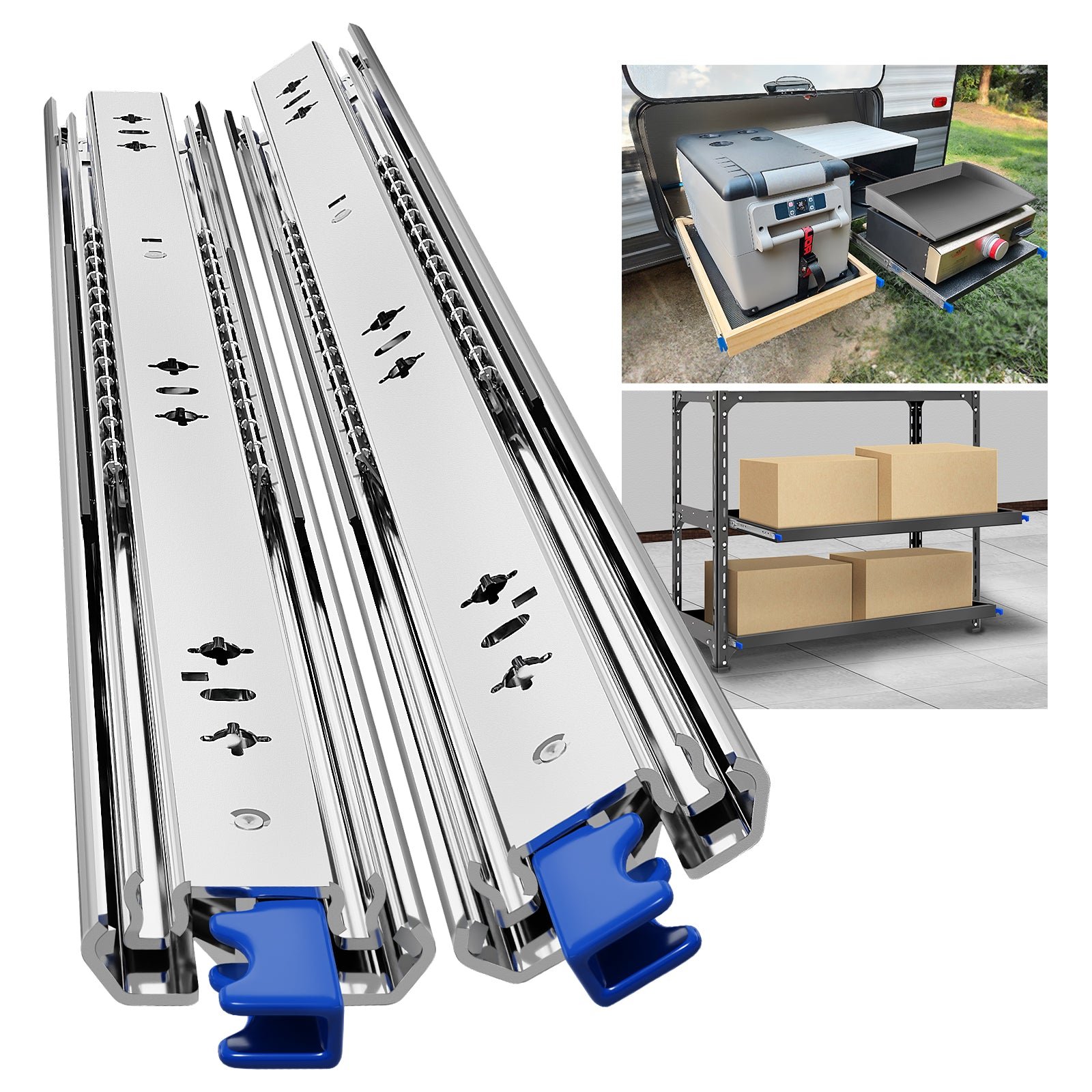

Product Description
The AOLISHENG Heavy Duty Drawer Slides with Lock are engineered for maximum strength, security, and versatility. Designed for industrial, automotive, and residential applications, these slides provide smooth, stable operation while handling heavy loads.
Featuring a full-extension, three-section design, drawers can be completely pulled out for easy access. The slides support up to 265 lb (120 kg) and are crafted from 2.0mm thick Q235 cold-rolled steel, ensuring exceptional durability without bending or warping.

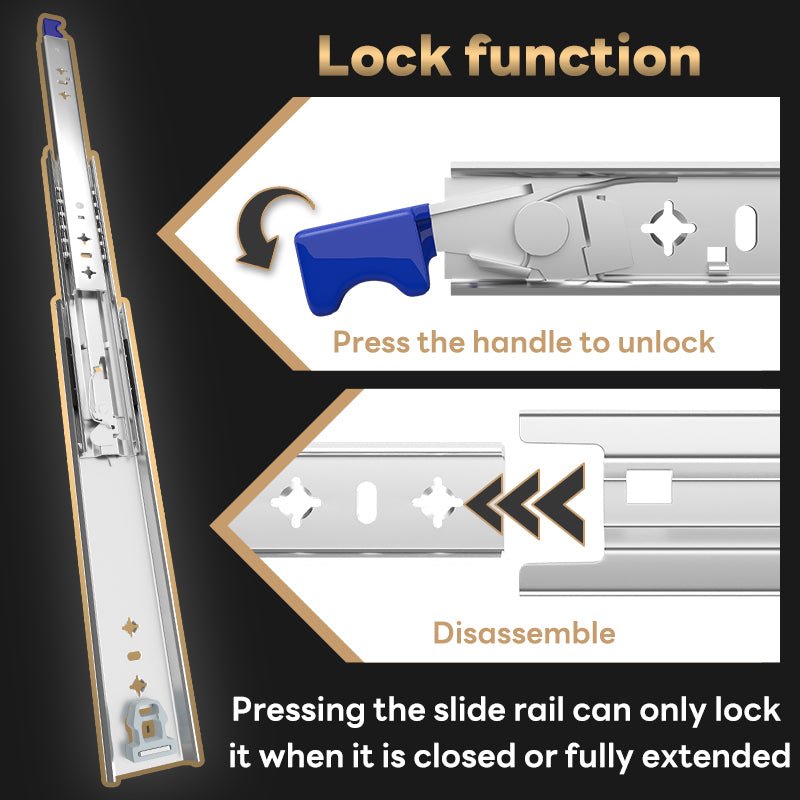

The dual-side lock mechanism allows drawers to be locked when fully closed or fully opened, preventing accidental sliding and enhancing security—functionality not found in standard slides.
Key Features
-
High Load Capacity: Supports up to 265 lb (120 kg) for heavy-duty storage needs.
-

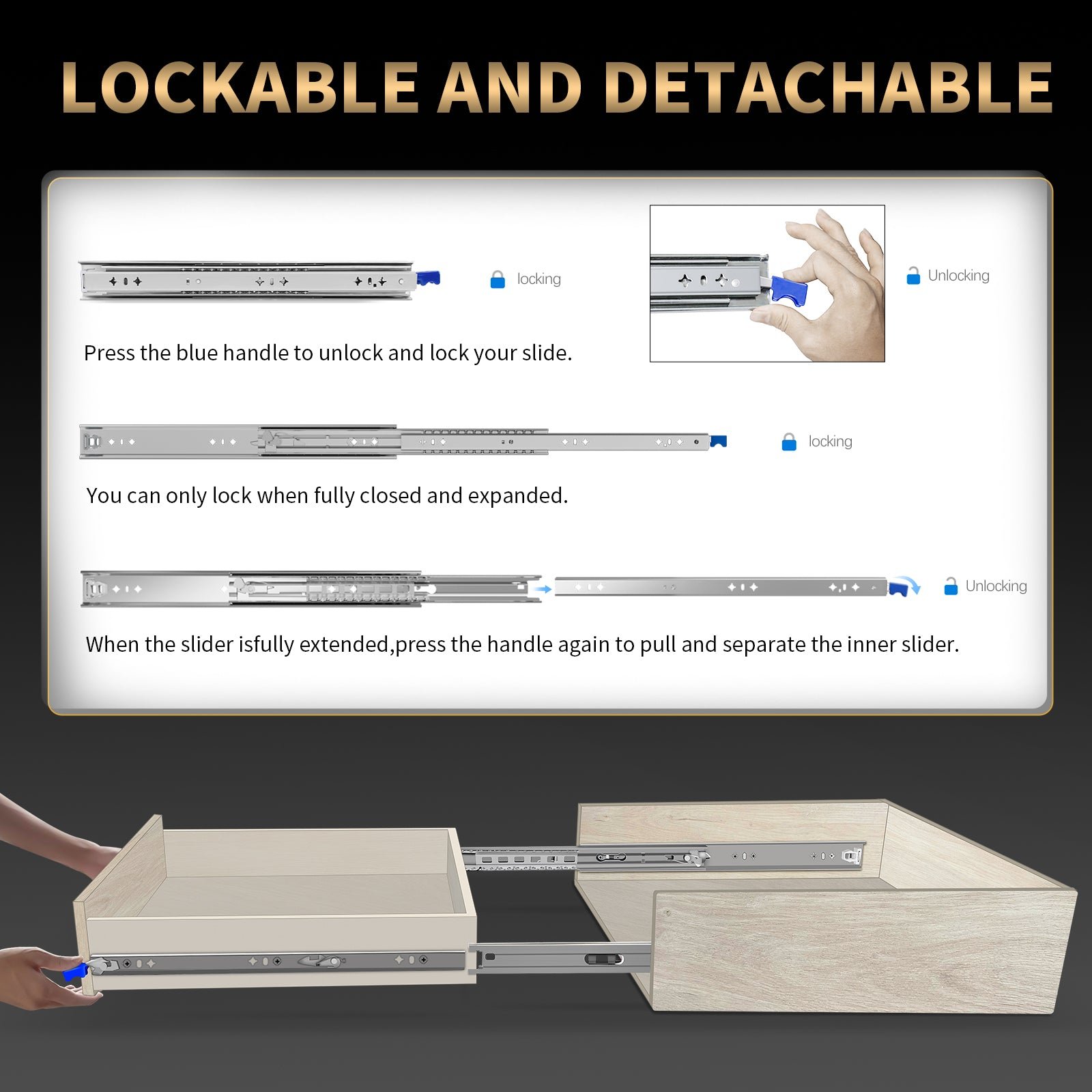

Lockable Design: Press the blue handles on both sides to lock/unlock. Secure when fully open or closed.
-
Full Extension & Detachable: Three-section design allows complete drawer access and easy installation.
-

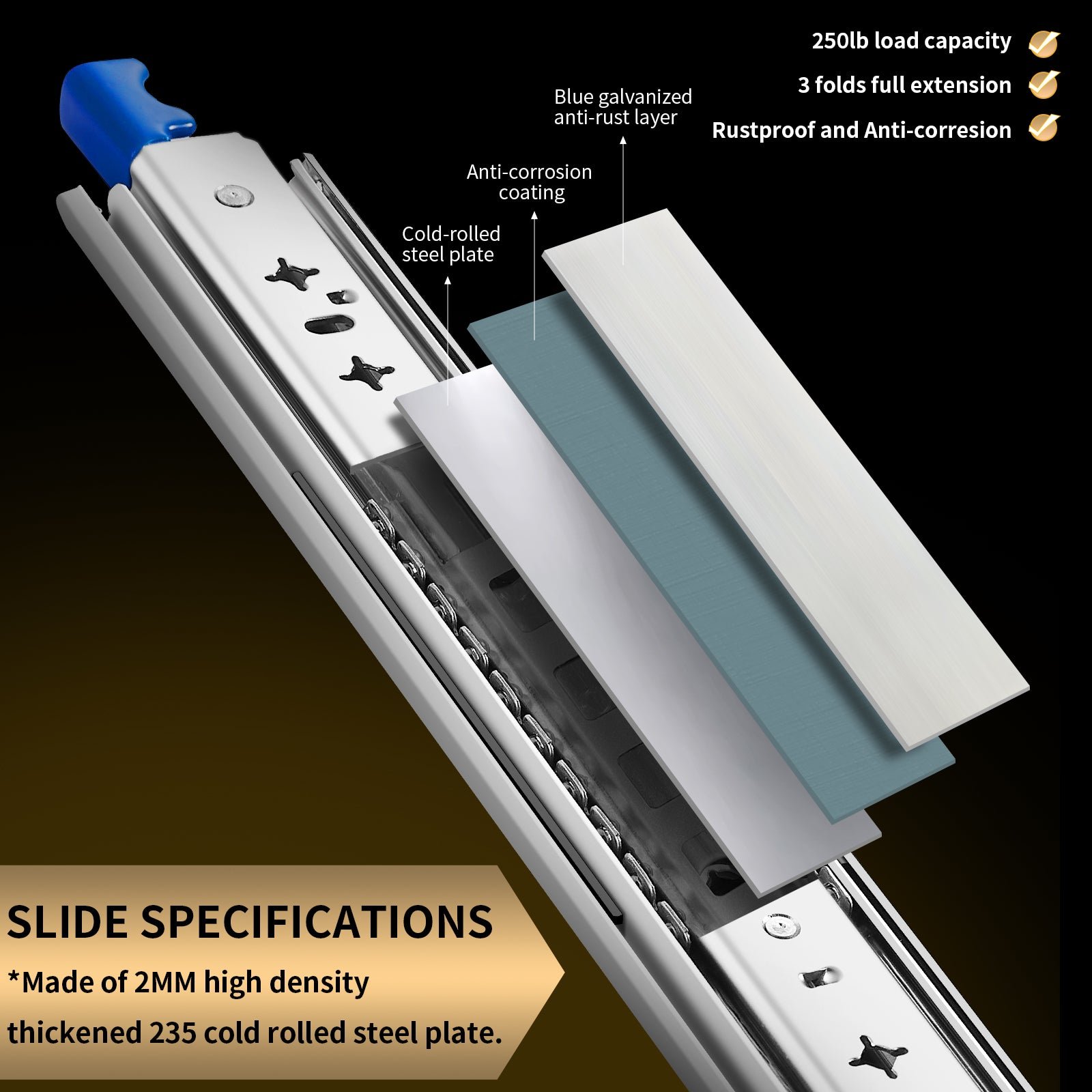

Durable Construction: Made from 2.0mm Q235 cold-rolled steel, built to withstand heavy loads and repeated use.
-
Rust-Resistant: Galvanized blue sealing treatment prevents corrosion and oxidation, suitable for humid environments.
-
DIY-Friendly Installation: Supplied with detailed installation video tutorial for quick and easy setup.
Installation Guide
-
Ensure Parallel Alignment: Rails must remain parallel; misalignment affects operation.
-
Mounting Screws & Brackets: Not included; M5 screws can be purchased separately according to your installation scenario.
-

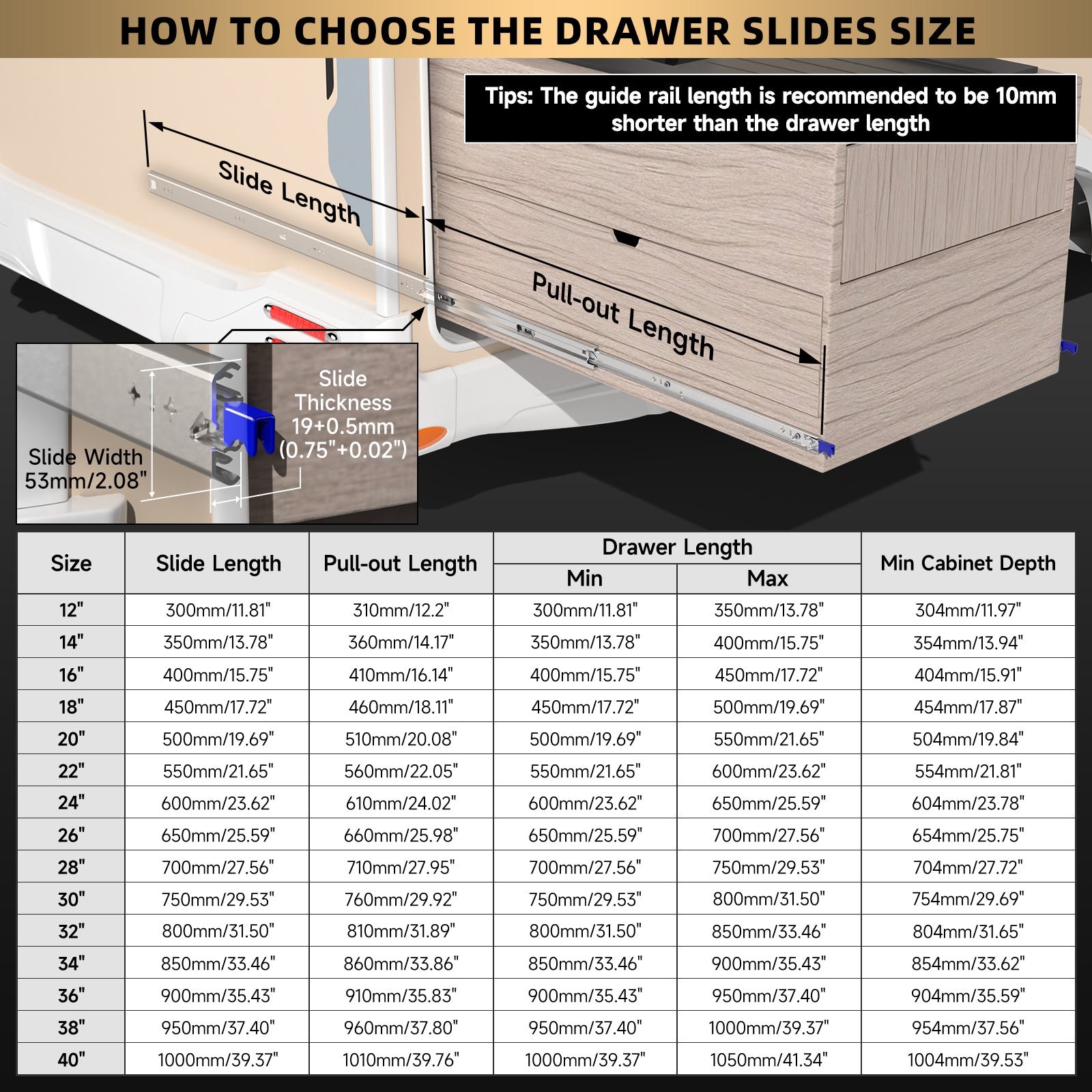

Minimum Drawer Depth: Choose slide length according to drawer depth; length ≤ drawer length.
Applications
-
Car modification and automotive storage
-
Industrial machinery and equipment
-
Shelf toolboxes and heavy-duty cabinets
-
Residential heavy-duty drawers
Typical applications
