AOLISHENG 150 lb Heavy-Duty Full Extension Ball Bearing Stainless Steel Drawer Slides – Tool Box, 1 Pair (W5115)
| Weight | N/A |
|---|
Specifications
| Type | 51 mm Wide Heavy-Duty Slide Rail |
|---|---|
| Material | Q235 Cold-rolled Steel |
| Mounting | Side-mounted |
| Load Capacity | 68 kg (≈150 lb) |
| Width | 51 mm |
| Installation Thickness | 12.7 ± 0.3 mm |
| Material Thickness | 1.5 × 1.5 × 1.5 mm |
| Surface Treatment | Blue Zinc Plating |
| Available Lengths | 10 – 40 inch |
Specifications and dimensions per ALS 2026 product catalogue.
AOLISHENG 5115 Series Specifications

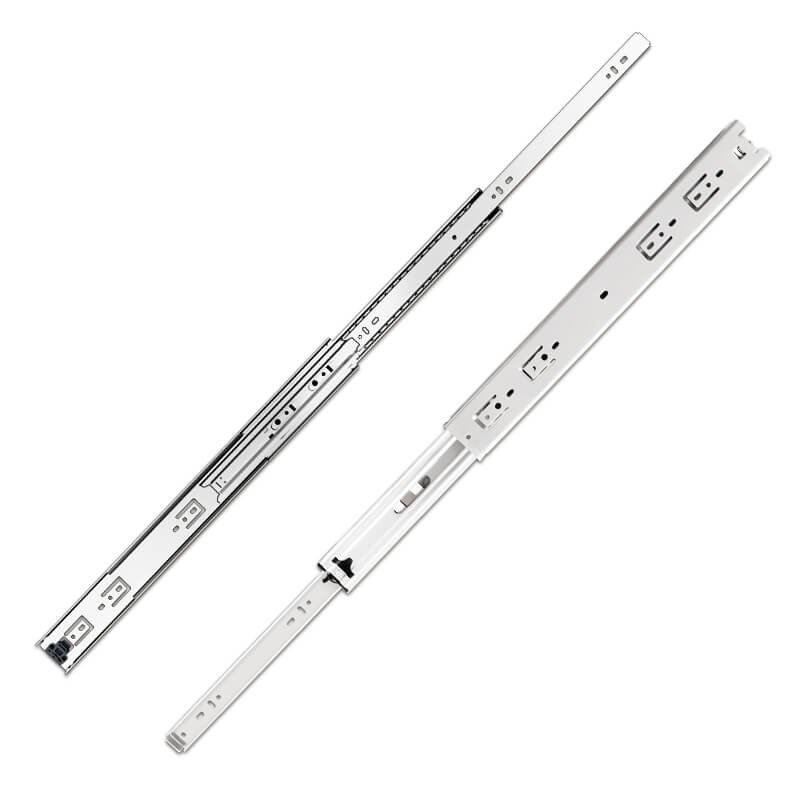

51MM WIDE LOCKING HEAVY-DUTY SLIDE RAIL

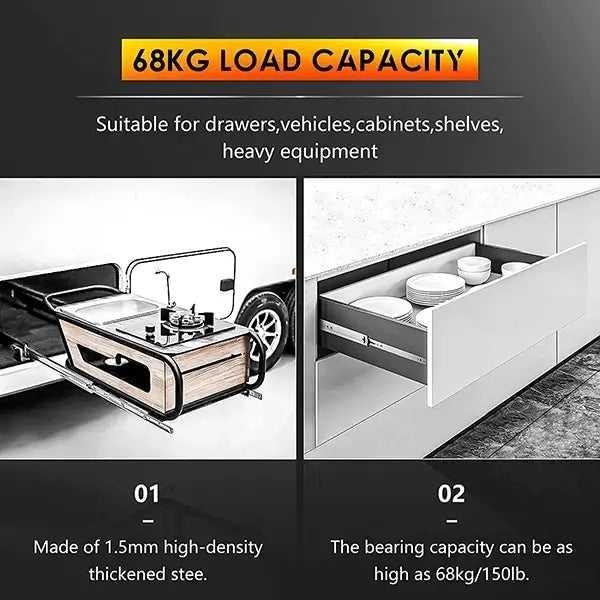

| Load Capacity | 68 kg / 150 lb |
|---|---|
| Installation Method | Side-mounted |
| Width | 51 mm |

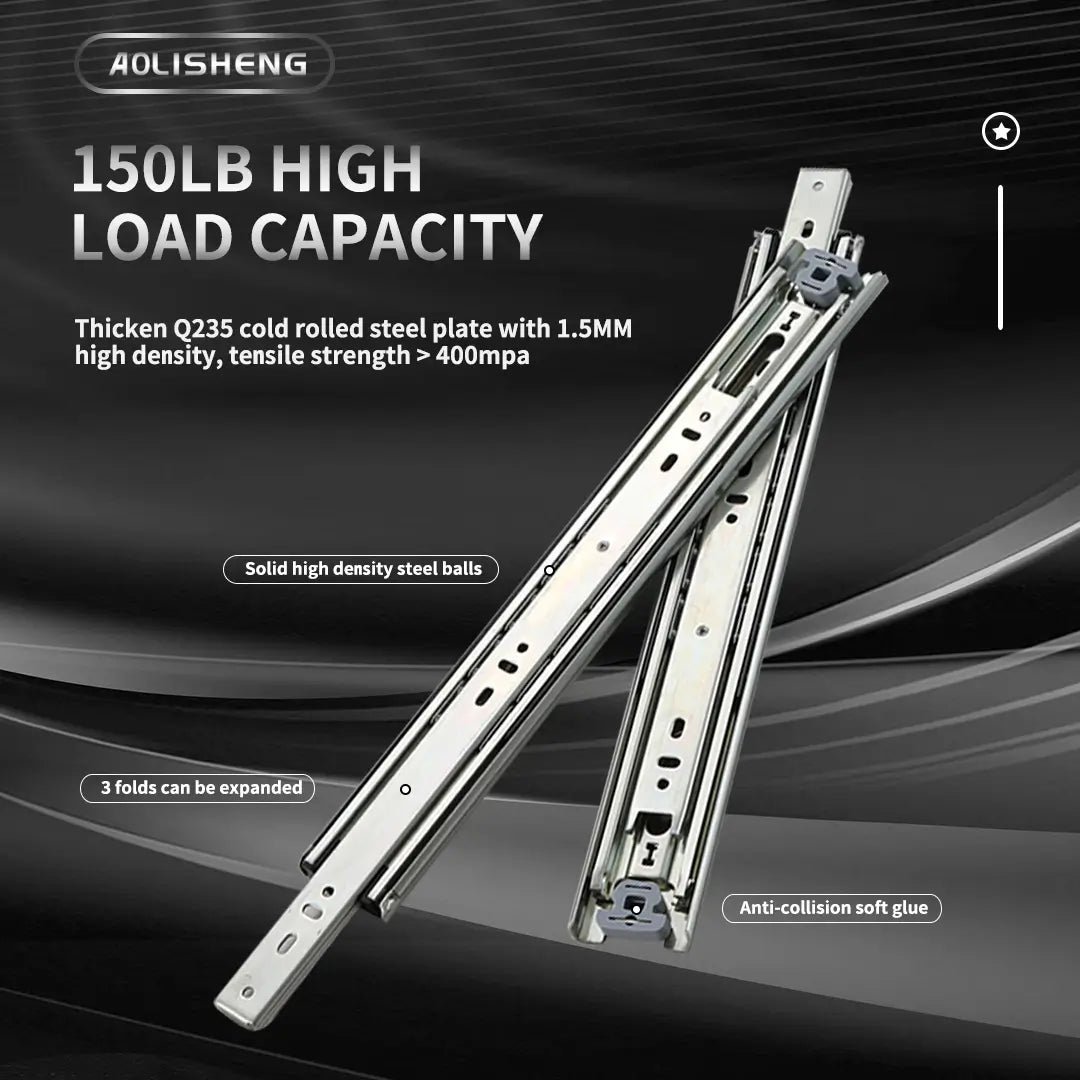

| Material | Q235 Cold-rolled Steel |
| Surface Treatment | Blue Zinc Plating |

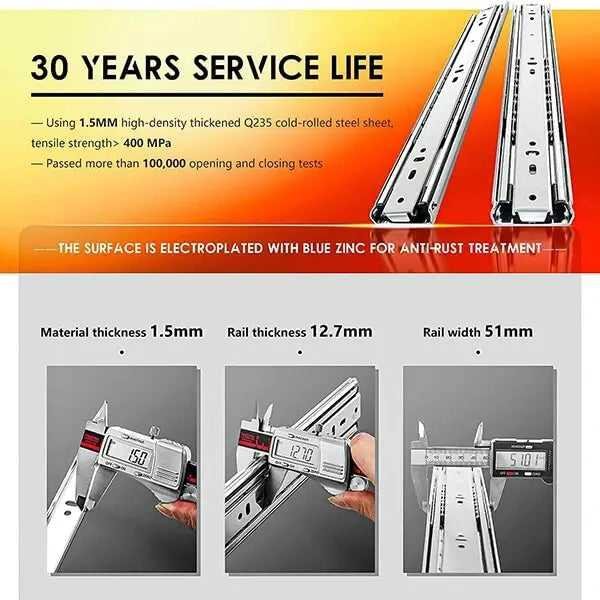

| Material Thickness | 1.5 × 1.5 × 1.5 mm |
| Installation Thickness | 12.7 ± 0.3 mm |
| Available Lengths | 10 – 40 inch |
Source: Per ALS 2026 catalogue
Available sizes and order codes
Every length below is a stocked variation of AOLISHENG 150 lb Heavy-Duty Full Extension Ball Bearing Stainless Steel Drawer Slides – Tool Box, 1 Pair (W5115). Sold as one pair (left plus right). Choose a size to open it with the length pre-selected.
| Size | Order code | Availability | Price | |
|---|---|---|---|---|
| 12" | GZXAW5115A1Y12 | In stock | Login to see prices | View size |
| 14" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 16" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 18" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 20" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 22" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 24" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 26" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 28" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 30" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 32" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 34" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 36" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 38" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
| 40" | 7888824107188-aolisheng-150lb-heavy-duty-full-extension-ball-bearing-stainless-drawer-slides-w5115 | In stock | Login to see prices | View size |
Need a length that is not listed? We produce custom lengths and hole patterns for OEM and ODM runs. Send your dimensions for a quote.
Related AOLISHENG slides
Guides for this model
Choosing between series?
Read the drawer slide buying guide for a side-by-side on load rating, extension type, mount style and material, including a quick-pick table by application.
This slide belongs to

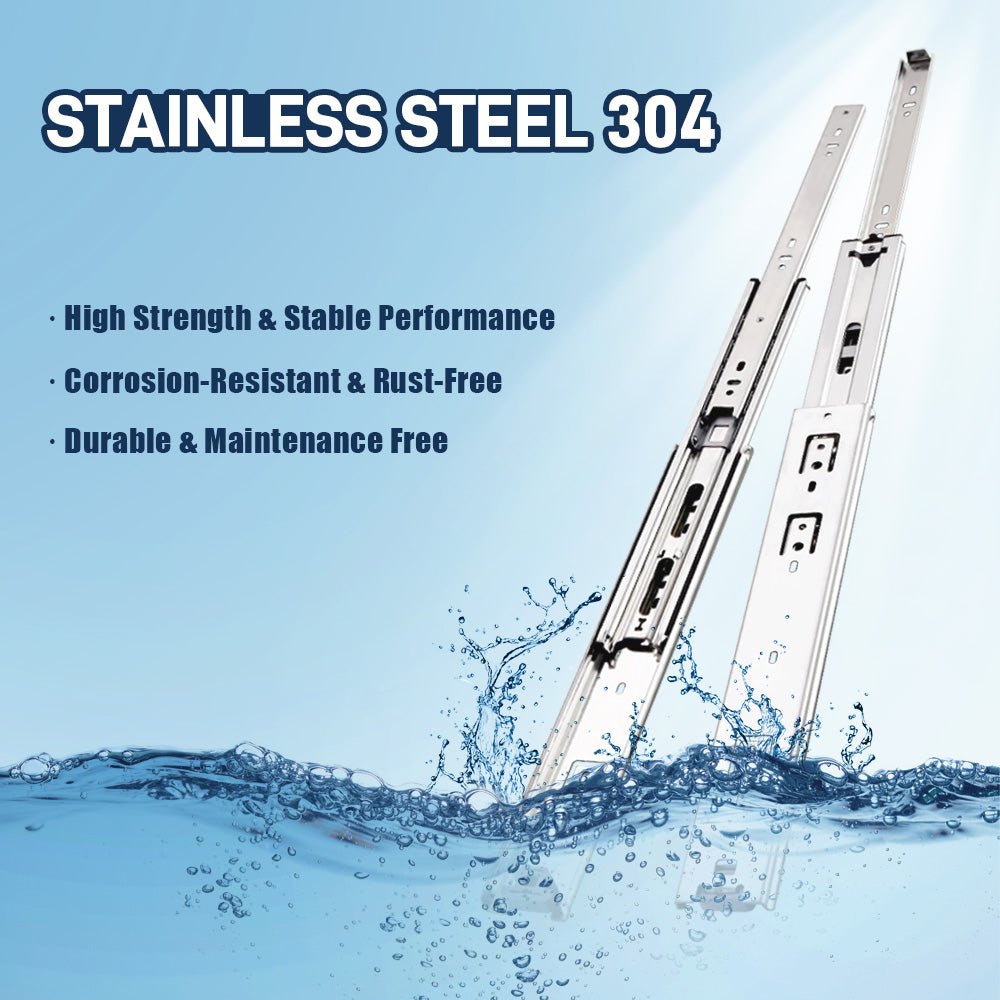

The AOLISHENG 500 lb 304 Stainless Steel Heavy Duty Drawer Slides are engineered for extreme load-bearing performance and harsh environments. Made from food-grade 304 stainless steel, they are corrosion-resistant, easy to clean, and hygienic.
Featuring a 3-fold full-extension design, these heavy-duty slides allow drawers to extend fully, providing maximum accessibility even under heavy loads. Perfect for commercial kitchens, industrial machinery, marine and outdoor cabinets, cold storage systems, and high-end furniture installations.
What’s Included
-
1 pair (2 pieces) of heavy-duty drawer slides
Note: Screws are not included. Use M6 screws for installation (sold separately).
Key Features
-

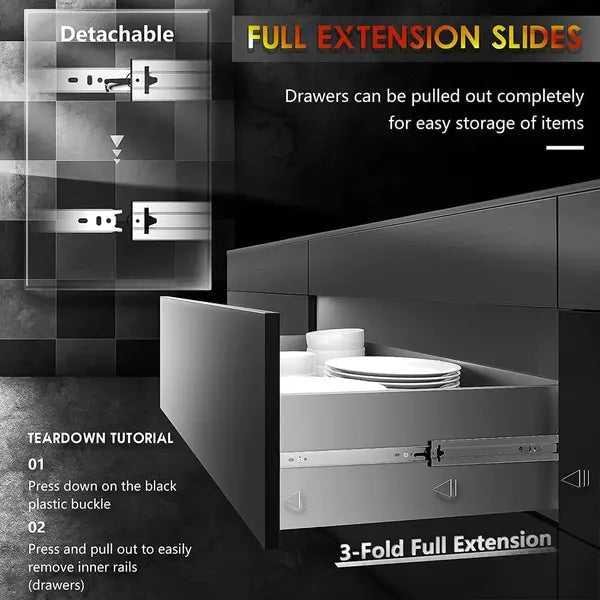

Full Extension Design: The 3-section structure allows the drawer to be pulled out completely, providing easy access to all stored items. Ideal for deep or heavy drawers.
-
Supports Up to 500 lb: Made from 0.1 in (2.5 mm) thick food-grade 304 stainless steel, capable of handling heavy loads without bending or warping. Tested for over 50,000 open-and-close cycles.
-
Double Anti-Rust Protection: Brushed stainless steel surface enhances corrosion resistance, scratch resistance, and provides a premium industrial appearance.
-
Easy, DIY-Friendly Installation: Installation is simple with a step-by-step video guide, suitable for both professionals and DIY users.
Installation Notes & Safety
-
Side Clearance: Leave 0.77 in (approx. 3/4 in) on each side to prevent binding or damage.
-
Non-Detachable Design: For safety and load stability, slides cannot be disassembled.
-
Load Adjustment by Length: Rated load starts at 18 in and decreases 10 lb for every additional 2 in beyond 18 in.
Applications
-
-
Commercial kitchens
-
Industrial machinery and equipment
-
Marine and outdoor cabinets
-
Cold storage and cold chain systems
-
Heavy-duty furniture and custom storage solutions
-
