Can I order samples before a full production run?

Yes. We ship sample sets of any AOLISHENG model so you can validate fit, load and finish before committing to volume. Tell us your cabinet opening width and drawer length and we will match the model.

Do you make custom lengths or mounting holes?

Standard lengths are stocked, and custom lengths, hole patterns and finishes are available for OEM and ODM projects. Share your drawing or dimensions and our engineering team will confirm feasibility.

What is the typical lead time and MOQ?

Stock models ship from our US warehouse in 2 to 5 business days. Production runs for custom or large orders are scheduled per your forecast; minimum order quantities are confirmed when we quote.

Are mounting screws and instructions included?

Each set ships with the matching fixing hardware and a fitment guide. Side-mount and undermount models use standard wood screws; stainless and heavy-duty sets include the heavier fixings they need.

What warranty do AOLISHENG slides carry?

All slides are built from cold-rolled or stainless steel with sealed ball bearings and are covered against manufacturing defects. For your application we will confirm the rated cycle life and warranty terms in writing.

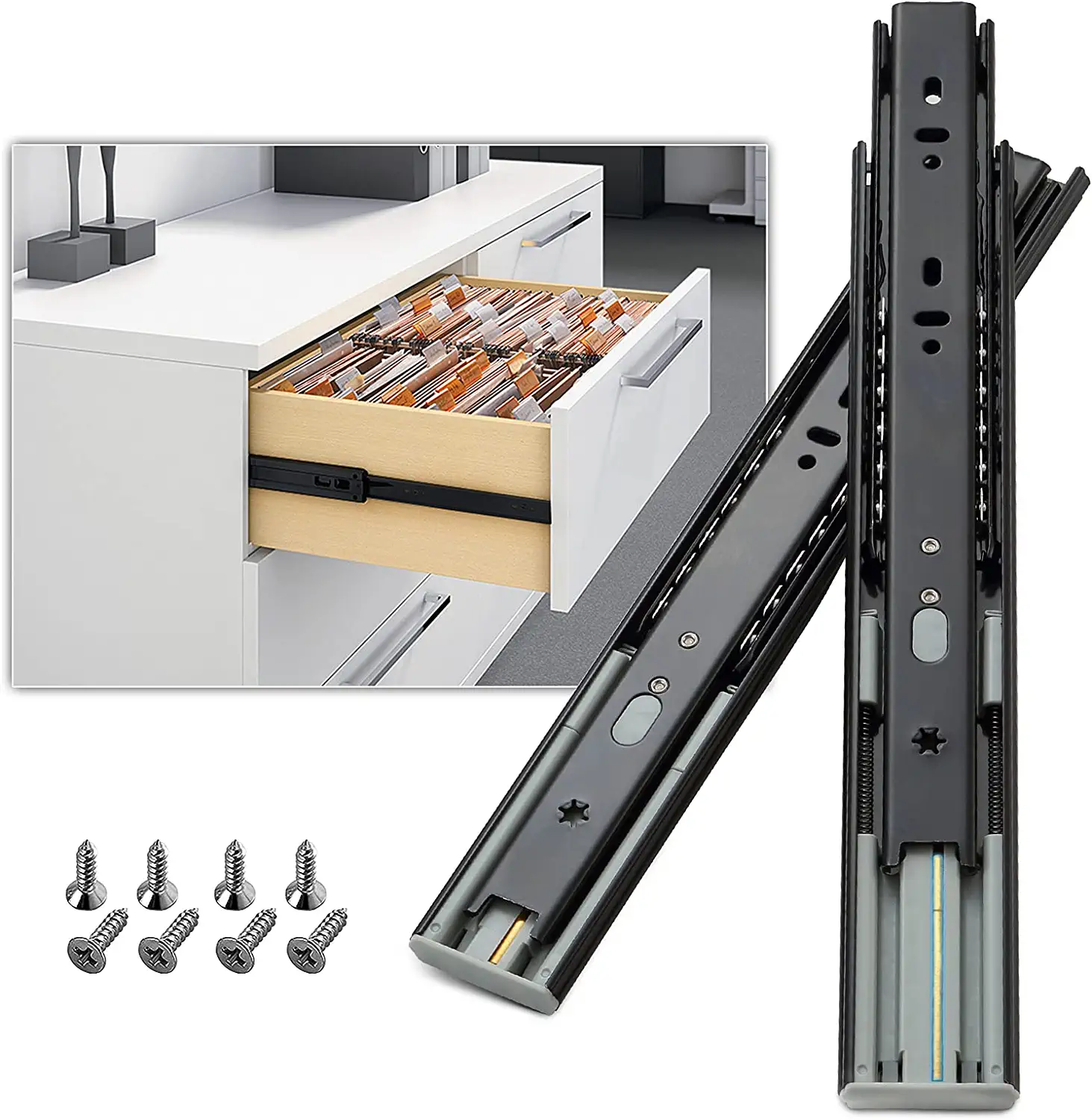

Soft Close Side Mounted Drawer Slide K1245

Click to enlarge

AOLISHENG 100 lb Full Extension Soft-Close Side Mount Drawer Slides for Kitchen, Bathroom & Cabinets- 5 Pairs (K1245)

Login to see prices

Weight	N/A

📦 US Warehouse🚚 Ships in 2-5 Business Days🏭 Factory-Direct Pricing

Request a Quote

Specifications

Type	Soft-Close Side-Mount Slide Rail
Mounting	Side-mounted
Load Capacity	100 lb (≈45 kg)
Extension	Full Extension
Feature	Soft-close

Specifications per product listing.

AOLISHENG 1245 Series Specifications

Full-extension side-mount slide rail

Load Capacity	100 lb / 45 kg
Installation Method	Side-mounted
Extension	Full-extension
Material	Stainless steel (thickened variants available)

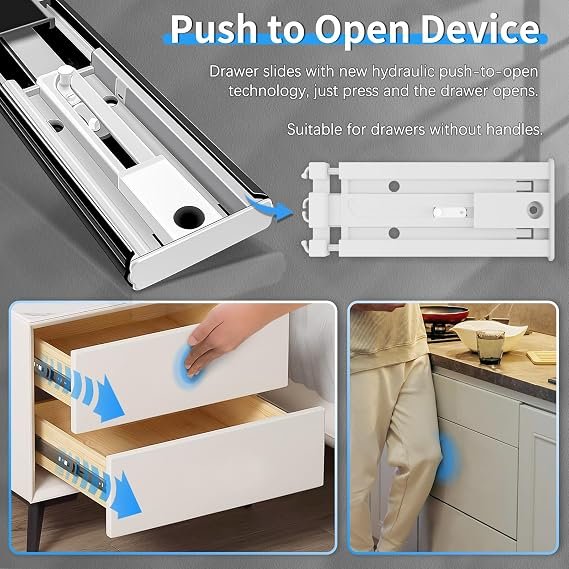

Features	Soft-close, push-to-open and standard options
Typical Use	Kitchen, bathroom and office cabinets

Source: Verified from live product listing

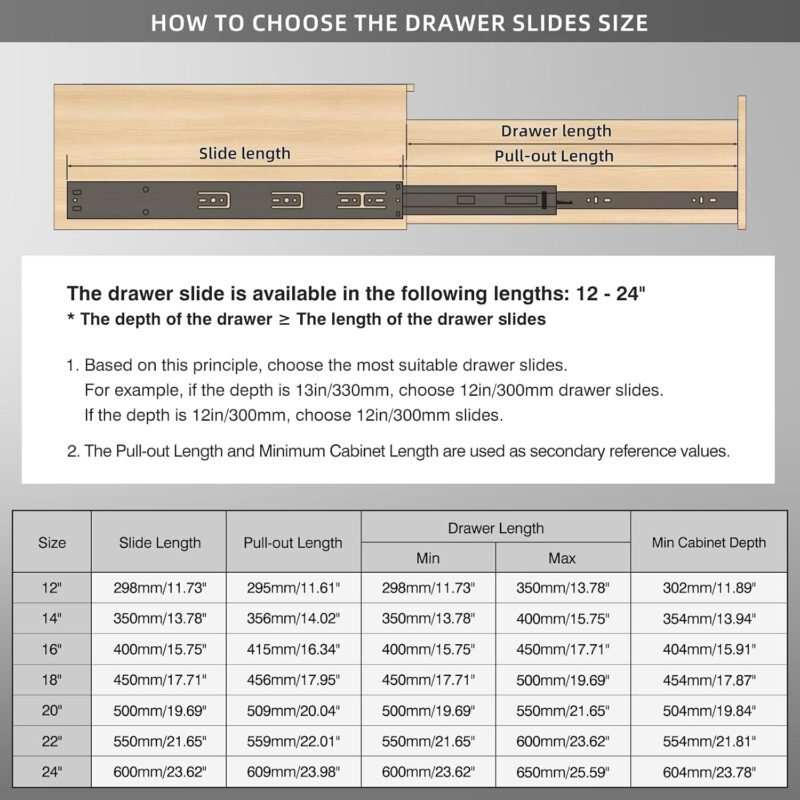

Available sizes and order codes

Every length below is a stocked variation of AOLISHENG 100 lb Full Extension Soft-Close Side Mount Drawer Slides for Kitchen, Bathroom & Cabinets- 5 Pairs (K1245). Sold as one pair (left plus right). Choose a size to open it with the length pre-selected.

Size	Order code	Availability	Price
12"	6102402793652-aolisheng-100lb-full-extension-soft-close-side-mounted-drawer-slides-k1245	In stock	Login to see prices	View size
14"	6102402793652-aolisheng-100lb-full-extension-soft-close-side-mounted-drawer-slides-k1245	In stock	Login to see prices	View size
16"	6102402793652-aolisheng-100lb-full-extension-soft-close-side-mounted-drawer-slides-k1245	In stock	Login to see prices	View size
18"	6102402793652-aolisheng-100lb-full-extension-soft-close-side-mounted-drawer-slides-k1245	In stock	Login to see prices	View size
20"	6102402793652-aolisheng-100lb-full-extension-soft-close-side-mounted-drawer-slides-k1245	In stock	Login to see prices	View size
22"	6102402793652-aolisheng-100lb-full-extension-soft-close-side-mounted-drawer-slides-k1245	In stock	Login to see prices	View size
24"	6102402793652-aolisheng-100lb-full-extension-soft-close-side-mounted-drawer-slides-k1245	In stock	Login to see prices	View size

Need a length that is not listed? We produce custom lengths and hole patterns for OEM and ODM runs. Send your dimensions for a quote.

Guides for this model

Choosing between series?

Read the drawer slide buying guide for a side-by-side on load rating, extension type, mount style and material, including a quick-pick table by application.

This slide belongs to

Request a quote · Contact AOLISHENG

Soft Close Drawer Slides

100 lb Load Capacity | Hydraulic Shock Absorber | Silent & Smooth | Side Mount | 3 Pairs Minimum

Product Description

The AOLISHENG Soft Close Drawer Slides feature built-in damping and silent devices, allowing drawers to close smoothly and quietly with a sound level as low as 25 dB. Designed for residential and office applications, these slides provide safe, quiet, and effortless operation.

Constructed from 1.2mm high-quality cold-rolled steel, each slide supports up to 100 lb (45 kg), 40 lb more than standard slides. The fully extended, detachable 3-fold design allows complete drawer access and makes installation easy. Two rows of solid steel balls ensure smooth and frictionless operation, while the slides are resistant to rust and noise.

Tested for over 150,000 open-and-close cycles, these slides offer a service life of up to 30 years, combining durability with quiet performance.

Key Features

Brass Hydraulic Shock Absorber: Automatic soft-close, quiet and safe operation.
High Load Capacity: Supports up to 100 lb (45 kg), 40 lb more than standard slides.

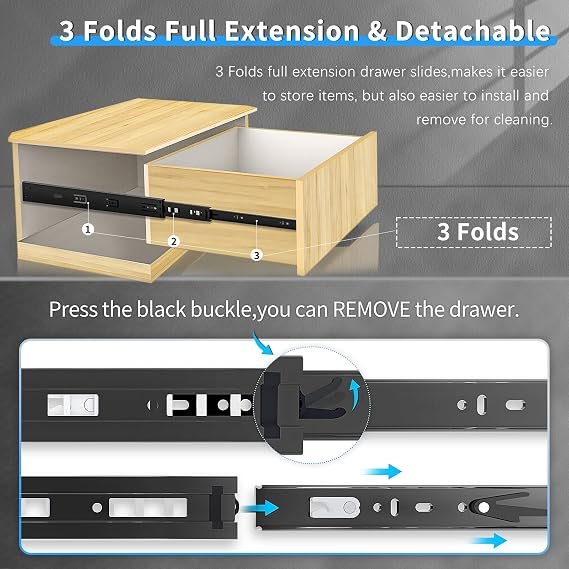

Full Extension & Detachable: 3-fold design allows complete access and easy installation.
Smooth & Silent Operation: Dual rows of solid steel balls ensure frictionless, quiet performance.
Durable & Long-Lasting: Tested for 50,000+ cycles; service life up to 30 years.
Rust-Resistant: Resistant to corrosion, suitable for kitchens, bathrooms, or utility areas.

Installation Guide

Slide Length: 11.81 in (300 mm), Pull-Out Length: 10.94 in (278 mm), suitable for drawers with internal depth ≥ 11.81 in
Mounting Clearance: Left 0.5 in / Right 0.5 in (12.7 mm)
Package Includes: 8 mounting screws
Installation Steps:
1. Push the inner ball bearing to the top of the slide rail
2. Connect the slide rail to the drawer
3. Gently push to complete installation
Ensure parallel alignment: Misaligned slides affect normal use

Notes

Minimum Purchase: 5 pairs
Ideal for users seeking quiet, smooth, high-load, and durable soft-close drawer slides
Rear brackets are not included.
