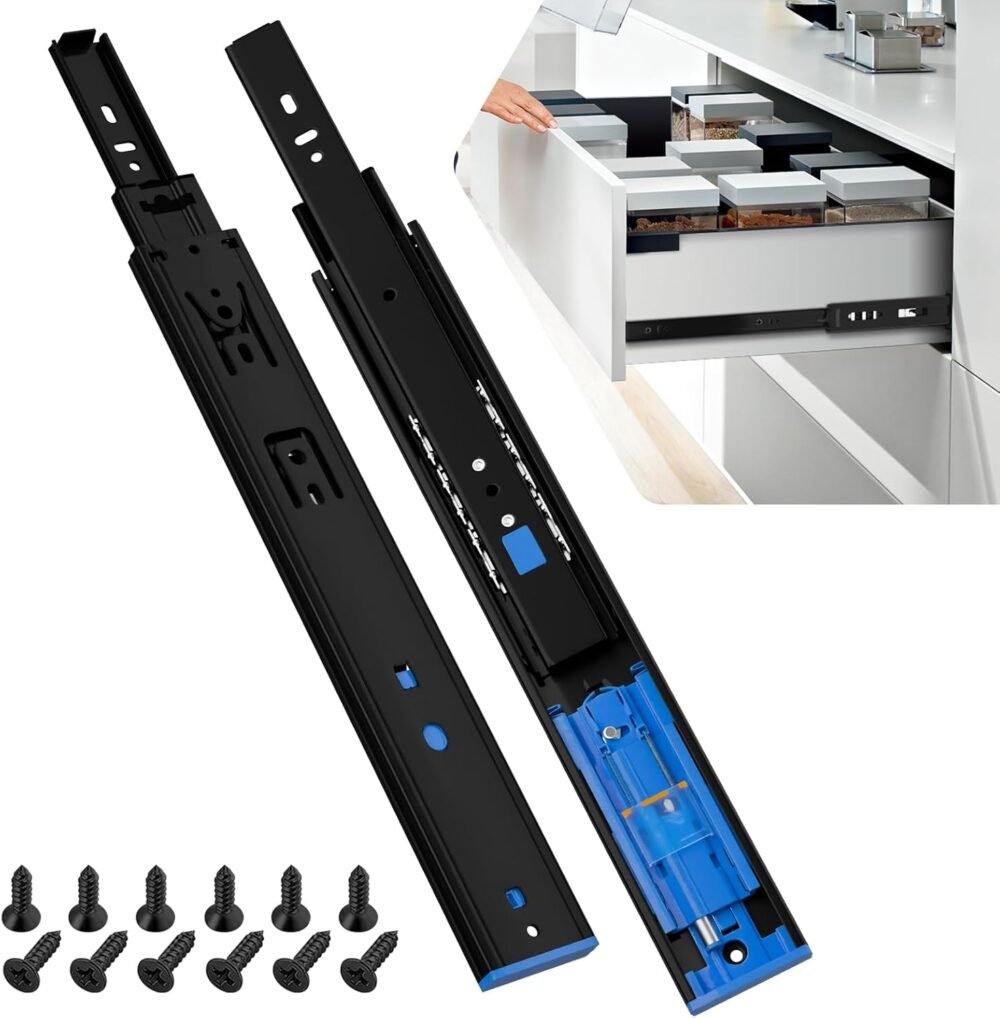

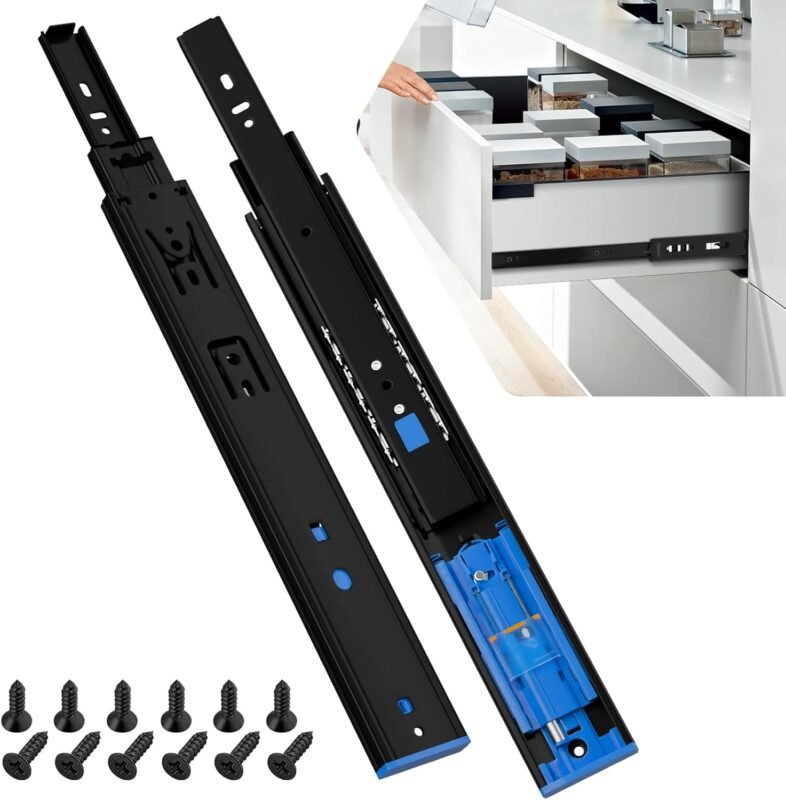

AOLISHENG 100 lb Push to Open & Soft Close Drawer Slides – 3-Fold Full Extension, Side Mount – 1 Pair (P4510)
The AOLISHENG P4510 is a side-mount, three-fold full-extension drawer slide rated for 100 lb (45 kg), combining push-to-open operation with hydraulic soft-close damping in a single slide. Made from 1.2 mm Q235 cold-rolled steel with an electrophoretic black finish, it is built for handle-less kitchen cabinets, bathroom vanities, wardrobes and office drawers.
| length |
12inch ,14inch ,16inch ,18inch ,20inch ,22inch ,24inch |
|---|
Specifications
| Type | 45 mm Wide Home & Decor Slide Rail |
|---|---|
| Material | Q235 Cold-rolled Steel / 304 Stainless Steel |
| Mounting | Side-mounted |
| Load Capacity | 45 kg (≈100 lb) |
| Width | 45 mm |
| Installation Thickness | 12.7 ± 0.3 mm |
| Material Thickness | 1.0 × 1.0 × 1.2 mm |
| Surface Treatment | Blue Zinc Plating / Black Electrophoresis |
| Available Lengths | 8 – 24 inch |
Specifications per ALS 2026 product catalogue.

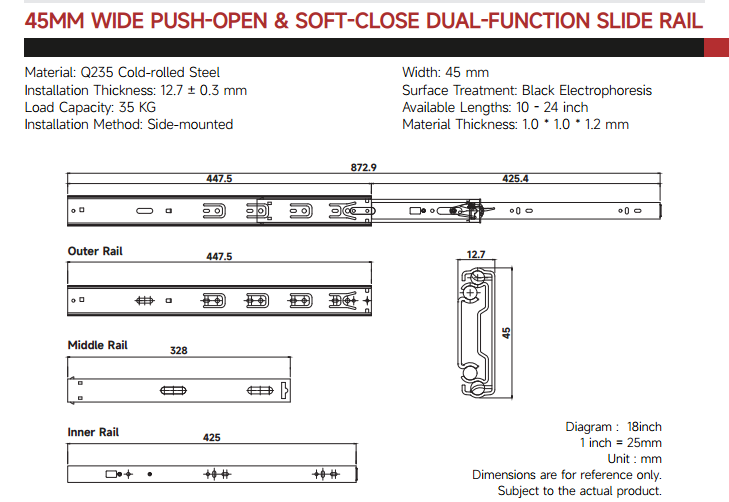

AOLISHENG 4510 Series Specifications
45MM WIDE HOME & DECOR SLIDE RAIL
| Load Capacity | 35 kg / 77 lb (standard); 40 kg / 88 lb (anti-tip) |
|---|---|
| Installation Method | Side-mounted |
| Width | 45 mm |
| Material | Q235 Cold-rolled Steel / 201 Stainless Steel |
| Surface Treatment | Blue Zinc Plating / Black Electrophoresis |
| Material Thickness | 1.0 × 1.0 × 1.2 mm |
| Installation Thickness | 12.7 ± 0.3 mm |
| Available Lengths | 8 – 24 inch |
Source: Per ALS 2026 catalogue
Choosing between series?
Read the drawer slide buying guide for a side-by-side on load rating, extension type, mount style and material, including a quick-pick table by application.
This slide belongs to
Key Features

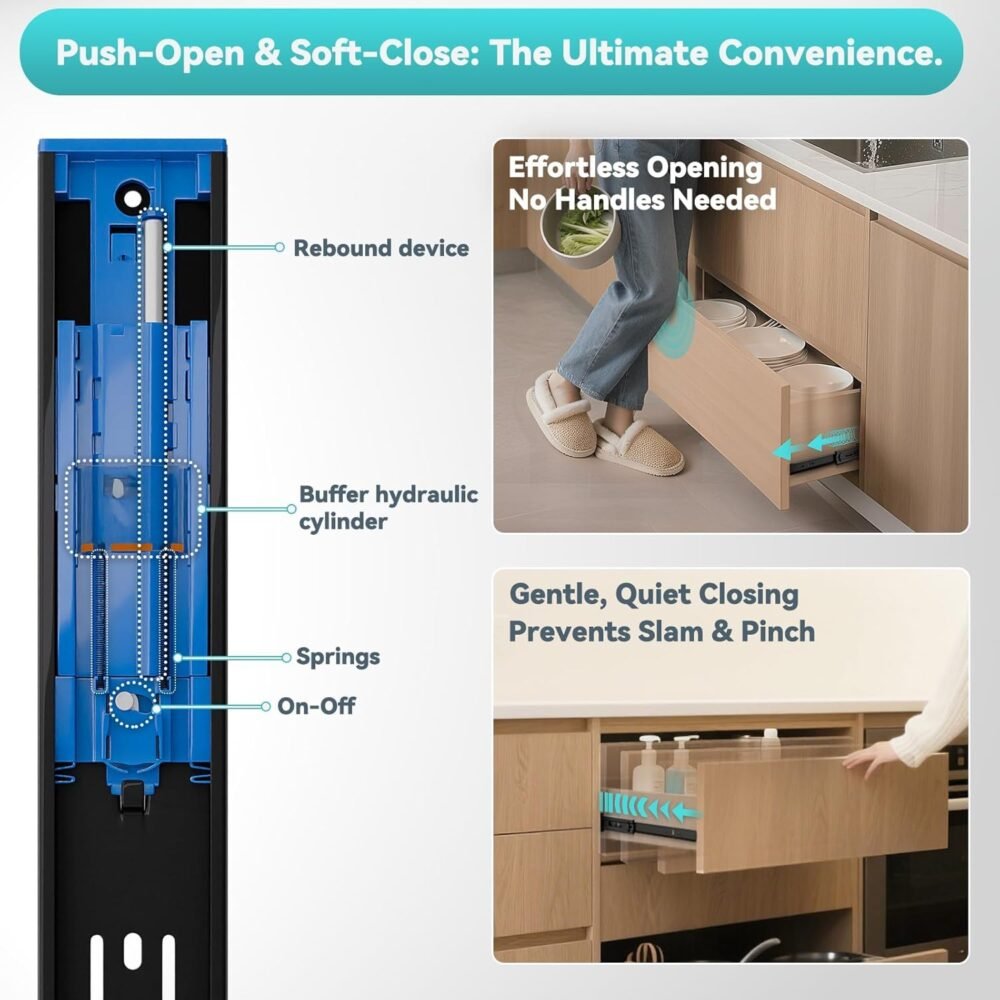

- Push-to-Open & Soft-Close: a light press on the drawer front releases it smoothly with no handle required, while a built-in hydraulic damper draws it closed gently and silently — two functions in one slide.
- 100 lb (45 kg) Load Capacity: 1.2 mm Q235 cold-rolled steel carries everyday kitchen, wardrobe and office drawer loads without sagging.
- 3-Fold Full Extension: the drawer extends completely clear of the cabinet, giving full access to items at the back.
- Removable Inner Rail: a black release clip at the rear lets you lift the drawer out for fitting or cleaning.
- Electrophoretic Black Finish: isolates the steel from air and moisture for corrosion and oxidation resistance — important in kitchens and bathrooms.
- Tested Durability: rated for over 50,000 open/close cycles.
Specifications
| Model | P4510 |
| Load Capacity | 100 lb / 45 kg |
| Functions | Push-to-open + soft-close |
| Mounting Type | Side mount |
| Structure | 3-fold full extension |
| Material | Q235 cold-rolled steel |
| Steel Thickness | 1.2 mm |
| Width | 45 mm |
| Finish | Electrophoretic black |

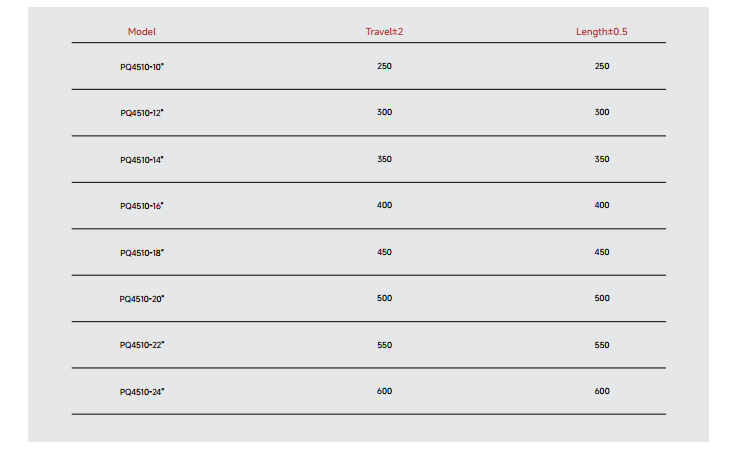

| Available Sizes | 12″, 14″, 16″, 18″, 20″, 22″, 24″ |
| Installation Clearance | 12.7±0.3mm per side — please confirm |
| Detachable | Yes , rear release clip |
| Mounting Screws | Not included |
| Sold As | 1 pair (2 pieces, left + right) |
Installation Guide
- Maintain parallel alignment: keep both slides parallel; misalignment will cause binding.
- Push the inner ball bearing to the top of the rail first, then connect it with the slide rail and complete with a gentle push.
- Allow a press-in gap at the drawer front so the push latch can release properly.
- Mounting screws are not included.
Applications
- Handle-less kitchen cabinets and pantry drawers
- Bathroom vanities (humidity-resistant finish)
- Wardrobes and closet storage
- Bedroom furniture and nightstands
- Office drawers and desk pedestals
