AOLISHENG 150 lb Locking Heavy-Duty Drawer Slides for Truck Toolboxes, RVs, Industrial & Workshop Storage – 1 Pair (D5115)
Specifications
| Type | 51 mm Wide Heavy-Duty Slide Rail |
|---|---|
| Material | Q235 Cold-rolled Steel |
| Mounting | Side-mounted |
| Load Capacity | 68 kg (≈150 lb) |
| Width | 51 mm |
| Installation Thickness | 12.7 ± 0.3 mm |
| Material Thickness | 1.5 × 1.5 × 1.5 mm |
| Surface Treatment | Blue Zinc Plating |
| Available Lengths | 10 – 40 inch |
Specifications and dimensions per ALS 2026 product catalogue.
AOLISHENG 5115 Series Specifications
51MM WIDE LOCKING HEAVY-DUTY SLIDE RAIL
| Load Capacity | 68 kg / 150 lb |
|---|---|
| Installation Method | Side-mounted |
| Width | 51 mm |
| Material | Q235 Cold-rolled Steel |
| Surface Treatment | Blue Zinc Plating |
| Material Thickness | 1.5 × 1.5 × 1.5 mm |
| Installation Thickness | 12.7 ± 0.3 mm |
| Available Lengths | 10 – 40 inch |
Source: Per ALS 2026 catalogue
Available sizes and order codes
Every length below is a stocked variation of AOLISHENG 150 lb Locking Heavy-Duty Drawer Slides for Truck Toolboxes, RVs, Industrial & Workshop Storage – 1 Pair (D5115). Sold as one pair (left plus right). Choose a size to open it with the length pre-selected.
| Size | Order code | Availability | Price | |
|---|---|---|---|---|
| 12" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 14" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 16" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 18" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 20" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 22" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 24" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 26" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 28" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 30" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 32" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 34" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 36" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 38" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
| 40" | 7099670954164-aolisheng-150lb-truck-toolbox-locking-heavy-duty-drawer-slides-d5115 | In stock | Login to see prices | View size |
Need a length that is not listed? We produce custom lengths and hole patterns for OEM and ODM runs. Send your dimensions for a quote.
Related AOLISHENG slides
Guides for this model
Choosing between series?
Read the drawer slide buying guide for a side-by-side on load rating, extension type, mount style and material, including a quick-pick table by application.
This slide belongs to
Ball Bearing Drawer Slides with Lock
150 lb Load Capacity | Lockable | 3-Fold Full Extension | Side Mount | 1 Pair
Product Description
The AOLISHENG 150 lb Ball Bearing Lockable Drawer Slides are designed for both residential and industrial applications. These slides can be locked and unlocked using the black lock handles, offering maximum safety and stability. Detachable and made for heavy-duty use, they are suitable for household cabinets, industrial drawers, RVs, trucks, woodworking projects, shelves, cabinets, and vending units.
What You Will Get
-
1 pair (2 pieces) of heavy-duty drawer slides
-
Note: Screws are not included; use M4 screws suitable for your installation scenario (sold separately).
Key Features
-
Full Extension Design: The 3-section full-extension design allows complete drawer access, making it easy to reach all stored items.
-
Supports Up to 150 lb: Constructed from 0.06 in (1.5 mm) thick Q235 cold-rolled steel, these slides are built to withstand heavy loads without bending or warping. Tested for over 50,000 open-and-close cycles.
-
Locking Mechanism for Safety: Press both black handles simultaneously to lock or unlock. Locks engage when the drawer is fully closed or fully opened to prevent accidental sliding, providing added security and stability.
-

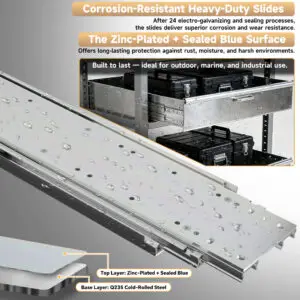

Double Anti-Rust: The surface is treated with a galvanized blue sealing process, isolating the rail from air and water exposure, enhancing corrosion resistance. Easy to clean with wide utility.
-
DIY-Friendly Installation: Includes a detailed video tutorial for installation. Ensure the rails on both sides remain parallel to maintain smooth operation. Mounting screws and brackets are not included. Choose rail length according to drawer depth; the rail should be less than or equal to the drawer length.
Installation Notes
-
Keep slide rails parallel on both sides; misalignment affects performance.
-
Mounting screws and brackets are not included. Use appropriate M4 screws for your installation scenario.
-
With the lock design, the drawer is locked when fully opened or fully closed, preventing accidental sliding.
Applications
-
Household cabinets
-
Industrial drawers
-
RVs and trucks
-
Tool and woodworking projects
-
Shelves and cabinets
-
Vending units
Note: Minimum purchase 1 pair
