-24%

Side Mounted Push Open Drawer Slide F1245

Click to enlarge

AOLISHENG 100 lb Push-to-Open Full Extension Side Mount Drawer Slides for Kitchen, Bathroom & Cabinets – 3 Pairs (F1245)...

AOLISHENG 100 lb Push-to-Open Full Extension Side Mount Drawer Slides for Kitchen, Bathroom & Cabinets – 3 Pairs (F1245)

Login to see prices

Weight	N/A

SKU: 6102474031284-aolisheng-100lb-push-to-open-full-extension-side-mount-drawer-slides-f1245 Categories: all-products, Cabinet Drawer Slides, Hot Sales, Push to Open Drawer Slides, Side Mount Drawer Slides Tags: 45mm wide buffer rail, Furniture hardware slide, Kitchen cabinet slide, Side-mounted drawer slide

📦 US Warehouse🚚 Ships in 2-5 Business Days🏭 Factory-Direct Pricing

Request a Quote

Specifications

Type	Soft-Close Side-Mount Slide Rail
Mounting	Side-mounted
Load Capacity	100 lb (≈45 kg)
Extension	Full Extension
Feature	Soft-close

Specifications per product listing.

AOLISHENG 1245 Series Specifications

Full-extension side-mount slide rail

Load Capacity	100 lb / 45 kg
Installation Method	Side-mounted
Extension	Full-extension
Material	Stainless steel (thickened variants available)
Features	Soft-close, push-to-open and standard options
Typical Use	Kitchen, bathroom and office cabinets

Source: Verified from live product listing

Available sizes and order codes

Every length below is a stocked variation of AOLISHENG 100 lb Push-to-Open Full Extension Side Mount Drawer Slides for Kitchen, Bathroom & Cabinets – 3 Pairs (F1245). Sold as one pair (left plus right). Choose a size to open it with the length pre-selected.

Size	Order code	Availability	Price
14"	GJZFQ4512A1H14	In stock	Login to see prices	View size
16"	6102474031284-aolisheng-100lb-push-to-open-full-extension-side-mount-drawer-slides-f1245	In stock	Login to see prices	View size
18"	6102474031284-aolisheng-100lb-push-to-open-full-extension-side-mount-drawer-slides-f1245	In stock	Login to see prices	View size
20"	6102474031284-aolisheng-100lb-push-to-open-full-extension-side-mount-drawer-slides-f1245	In stock	Login to see prices	View size
22"	6102474031284-aolisheng-100lb-push-to-open-full-extension-side-mount-drawer-slides-f1245	In stock	Login to see prices	View size
24"	6102474031284-aolisheng-100lb-push-to-open-full-extension-side-mount-drawer-slides-f1245	In stock	Login to see prices	View size

Need a length that is not listed? We produce custom lengths and hole patterns for OEM and ODM runs. Send your dimensions for a quote.

Guides for this model

Choosing between series?

Read the drawer slide buying guide for a side-by-side on load rating, extension type, mount style and material, including a quick-pick table by application.

This slide belongs to

Request a quote · Contact AOLISHENG

Push-to-Open Drawer Slides

100 lb Load Capacity | Hydraulic Rebound | 3-Fold Full Extension | Side Mount | 3 Pairs Minimum

Product Description

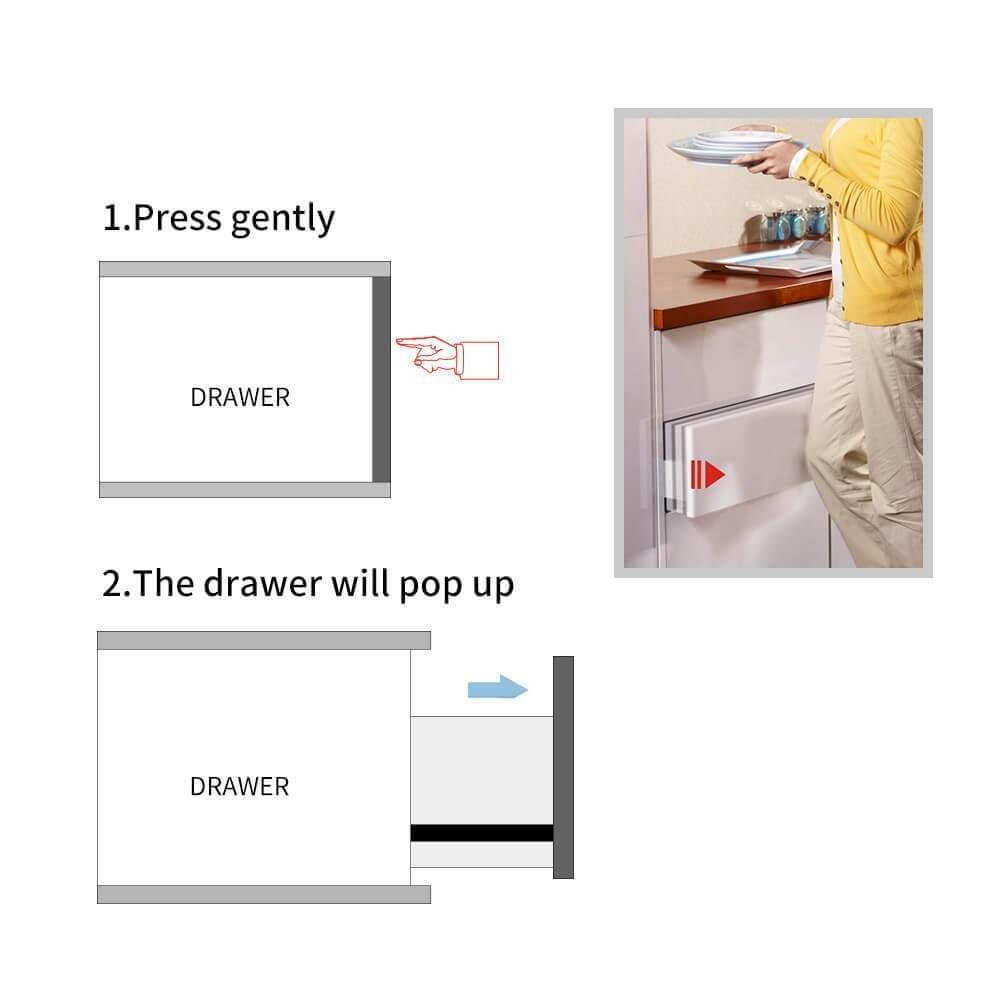

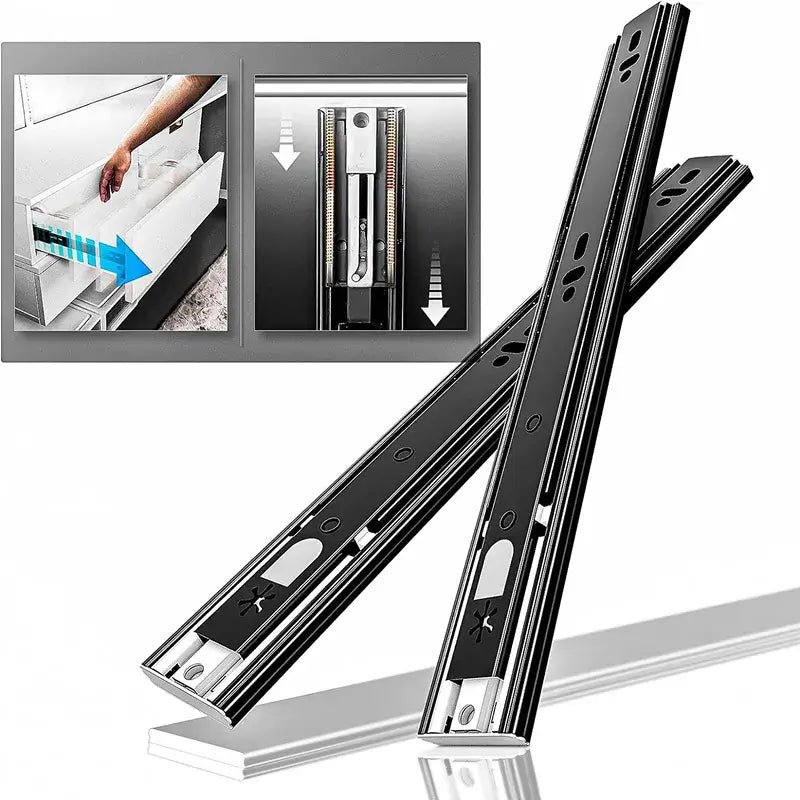

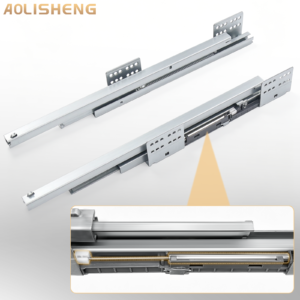

The AOLISHENG Push-to-Open Drawer Slides feature a new hydraulic rebound mechanism, eliminating the need for traditional handles. With a light press, drawers open smoothly and quietly, making them ideal for hidden or handle-less drawer designs.

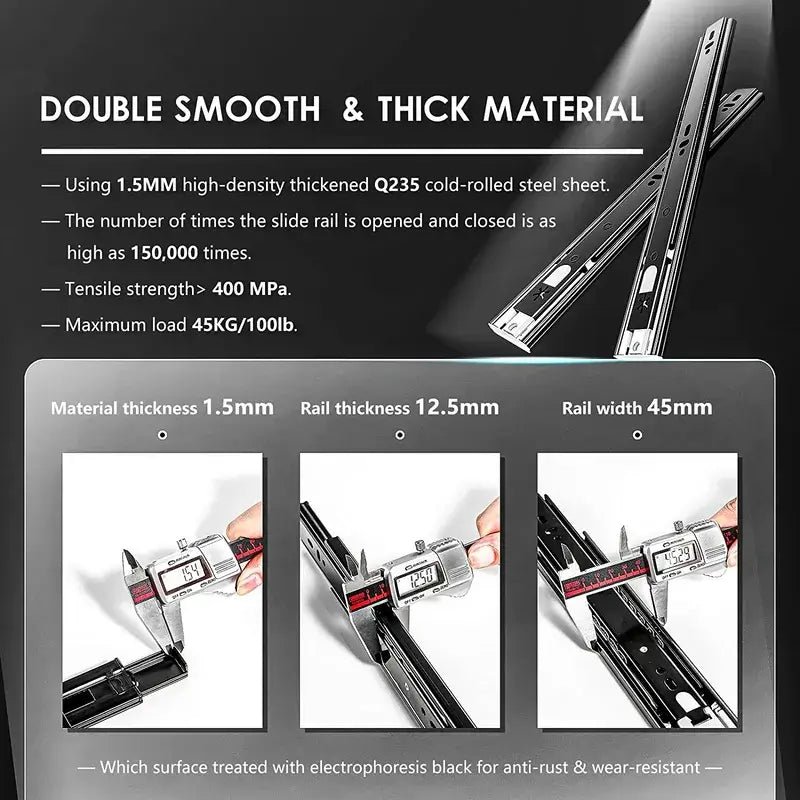

Constructed from 1.2mm high-quality cold-rolled steel, these slides support up to 100 lb (45 kg), 40 lb more than standard slides, suitable for a wide range of household and residential drawers.

The 3-fold full-extension, detachable design allows drawers to be fully extended for complete access and makes installation and storage simple. Two rows of solid steel ball bearings provide smooth, frictionless operation, while the slides are resistant to rust and noise.

Tested for over 50,000 open-and-close cycles, these slides offer a long service life of up to 30 years.

Key Features

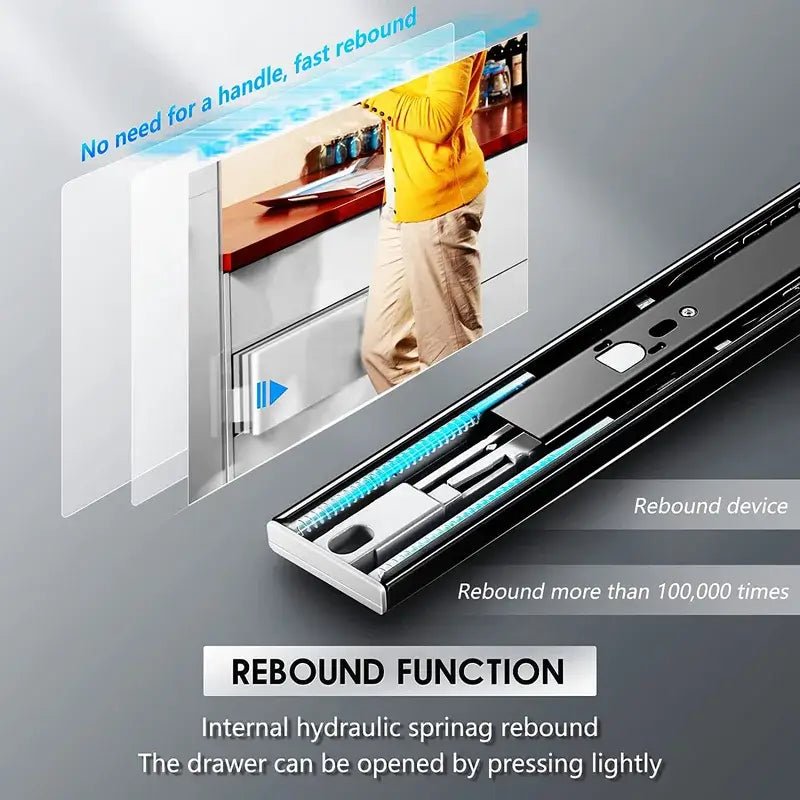

Hydraulic Rebound Mechanism: Open drawers effortlessly with a light press; perfect for handle-less designs.

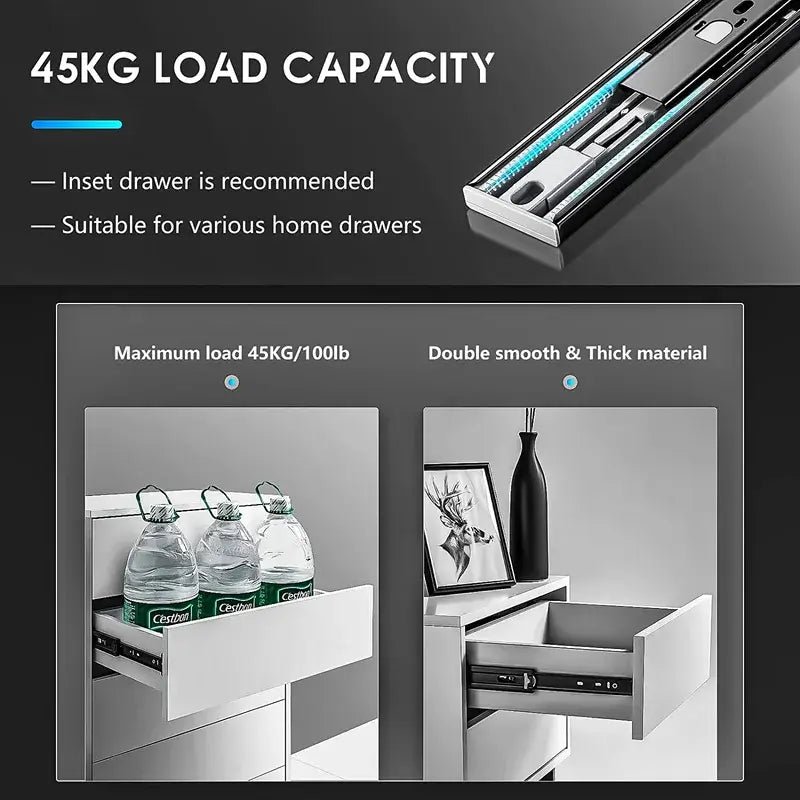

High Load Capacity: Supports up to 100 lb (45 kg), 40 lb more than standard slides.

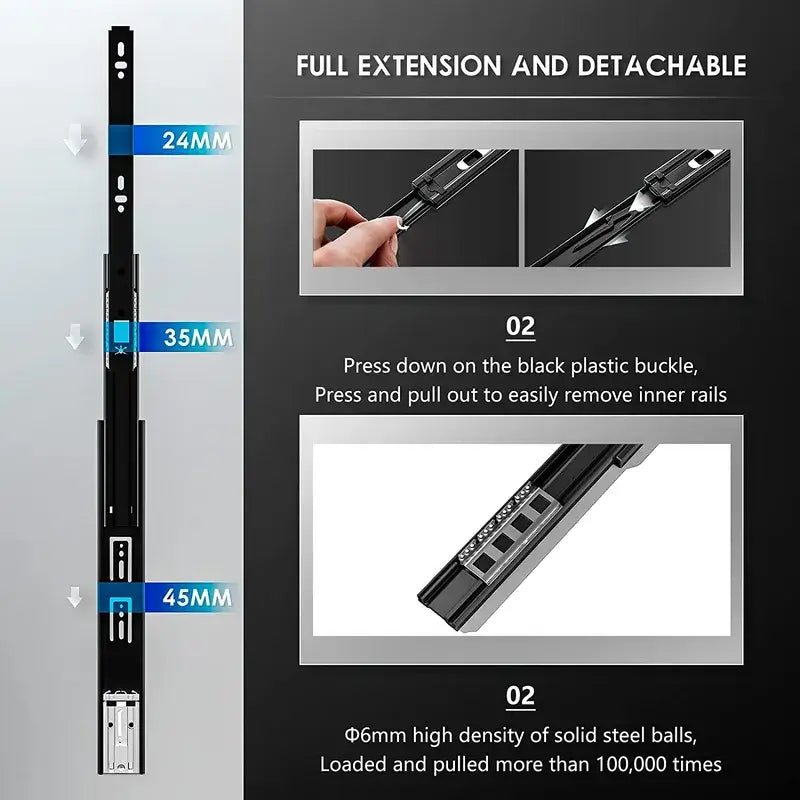

Full Extension & Detachable: 3-fold design allows complete access and easy installation.

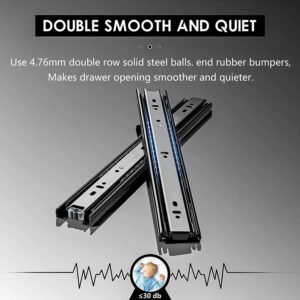

Smooth & Silent Operation: Dual rows of solid steel balls ensure frictionless and quiet movement.
Durable & Long-Lasting: Tested for 50,000+ cycles, with a service life up to 30 years.
Rust-Resistant: Built to resist corrosion and maintain appearance in humid environments.

Installation Guide

Rail Length: 24 in (for drawers with interior depth ≥ 24 in)
Full Extension Length: 48 in (3-section design)
Mounting Clearance: Left 0.5 in / Right 0.5 in
Package Includes: 8 mounting screws (both ends)
Installation Steps:
1. Push the inner ball to the top of the rail
2. Connect the rail to the drawer, allowing the slide to protrude by 0.5 mm to ensure sufficient pressing clearance
3. Gently push to complete installation
4. Ensure rails on both sides remain parallel; misalignment affects performance

Applications

Handle-less residential drawers
Kitchen and bathroom cabinets
Office furniture and storage units
Utility and deep drawers

Notes

Minimum Purchase: 3 pairs
Ideal for users who want smooth, quiet, handle-free, and high-load drawer slides
