AOLISHENG 770lb Load Capacity Twin-Slide Heavy Duty Drawer Slides Side Mount Full Extension Ball Bearing Rails for Workshops Kitchens Garages and Industrial Settings, ——1Pair （AQ7625K3）
| length |
40" ,48" ,60" |
|---|
Specifications
| Model | AQ7625K3 |
|---|---|
| Type | Twin-Slide Heavy-Duty Ball Bearing Slide |
| Mounting | Side-mounted, two rails per side |
| Load Capacity | 770 lb (350 kg) |
| Extension | Full Extension |
| Material | Q235 Cold-rolled Steel, 2.5 mm |
| Surface Treatment | Galvanized blue sealing, e-coating and zinc electroplating |
| Corrosion Resistance | 48-hour salt spray test, operating -15 °C to 50 °C |
| Mounting Screws | Not included, M6 |
| Sold As | 1 pair (left + right) |
Specifications per product listing.
Available sizes and order codes
Every length below is a stocked variation of AOLISHENG 770lb Load Capacity Twin-Slide Heavy Duty Drawer Slides Side Mount Full Extension Ball Bearing Rails for Workshops Kitchens Garages and Industrial Settings, ——1Pair （AQ7625K3）. Sold as one pair (left plus right). Choose a size to open it with the length pre-selected.
| Size | Order code | Availability | Price | |
|---|---|---|---|---|
| 40" | — | In stock | Login to see prices | View size |
| 48" | — | In stock | Login to see prices | View size |
| 60" | — | In stock | Login to see prices | View size |
Need a length that is not listed? We produce custom lengths and hole patterns for OEM and ODM runs. Send your dimensions for a quote.
Related AOLISHENG slides
Guides for this model
Choosing between series?
Read the drawer slide buying guide for a side-by-side on load rating, extension type, mount style and material, including a quick-pick table by application.
This slide belongs to
Twin-Slide Heavy Duty Drawer Slides
770 lb Load Capacity | Full Extension | Side Mount | 1 Pair
Product Description

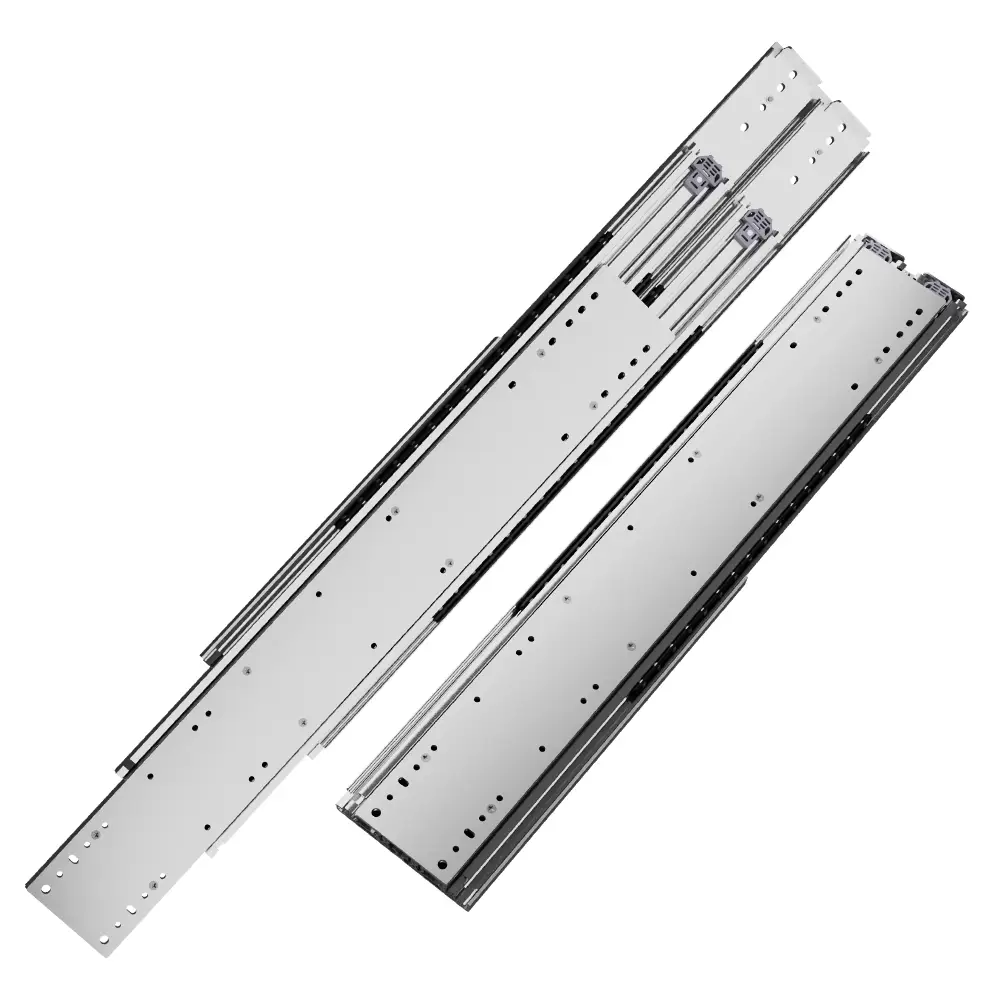

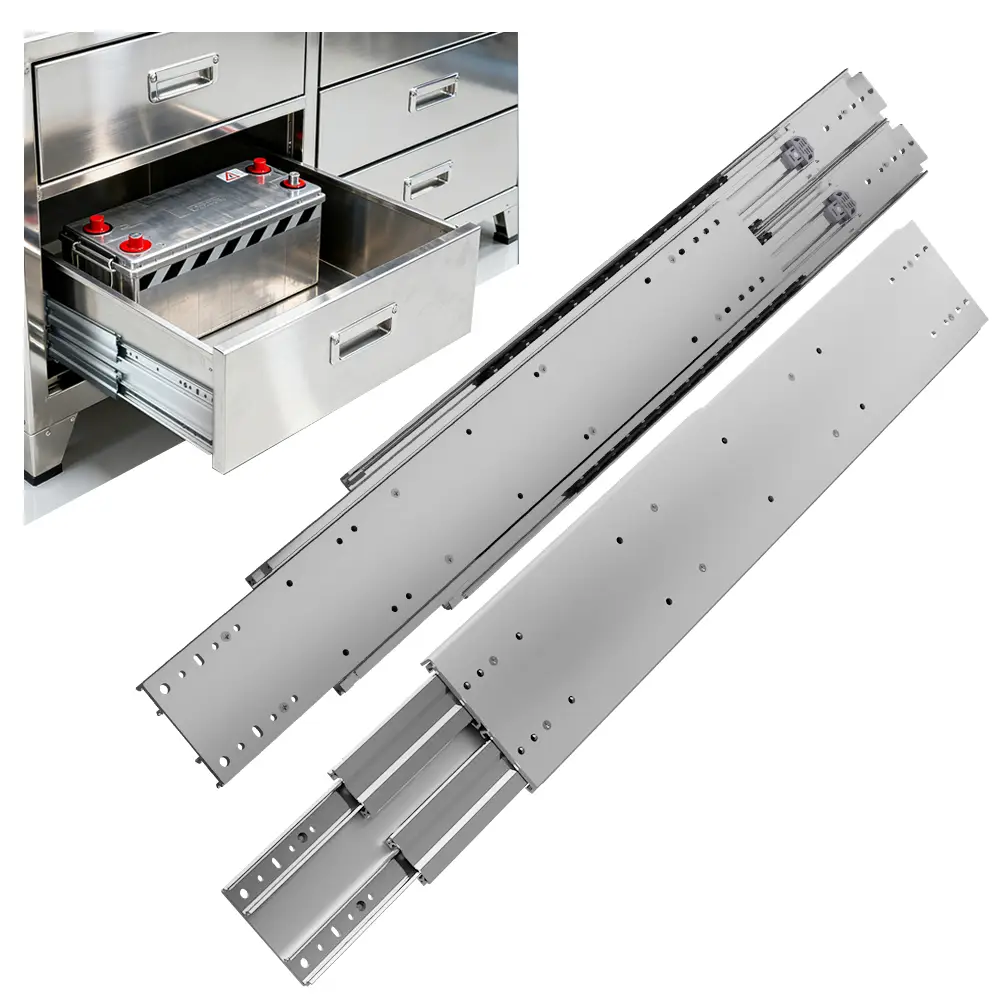

The AOLISHENG Twin-Slide Heavy Duty Drawer Slides means two independent slides are installed side-by-side on each side of the drawer, whereas ordinary drawers typically have only one slide per side. It is designed for demanding applications where safety, strength, and smooth operation are essential. Ideal for car modifications, mechanical equipment storage, toolboxes, shelves, cabinets, industrial drawers, RVs, trucks, vending machines, and ATM drawers.
Made from 2.5mm thick Q235 cold-rolled steel, these slides provide exceptional strength and durability, supporting up to 770 lb (350 kg). Tested for over 50,000 open/close cycles, they ensure long-lasting performance even under heavy loads.

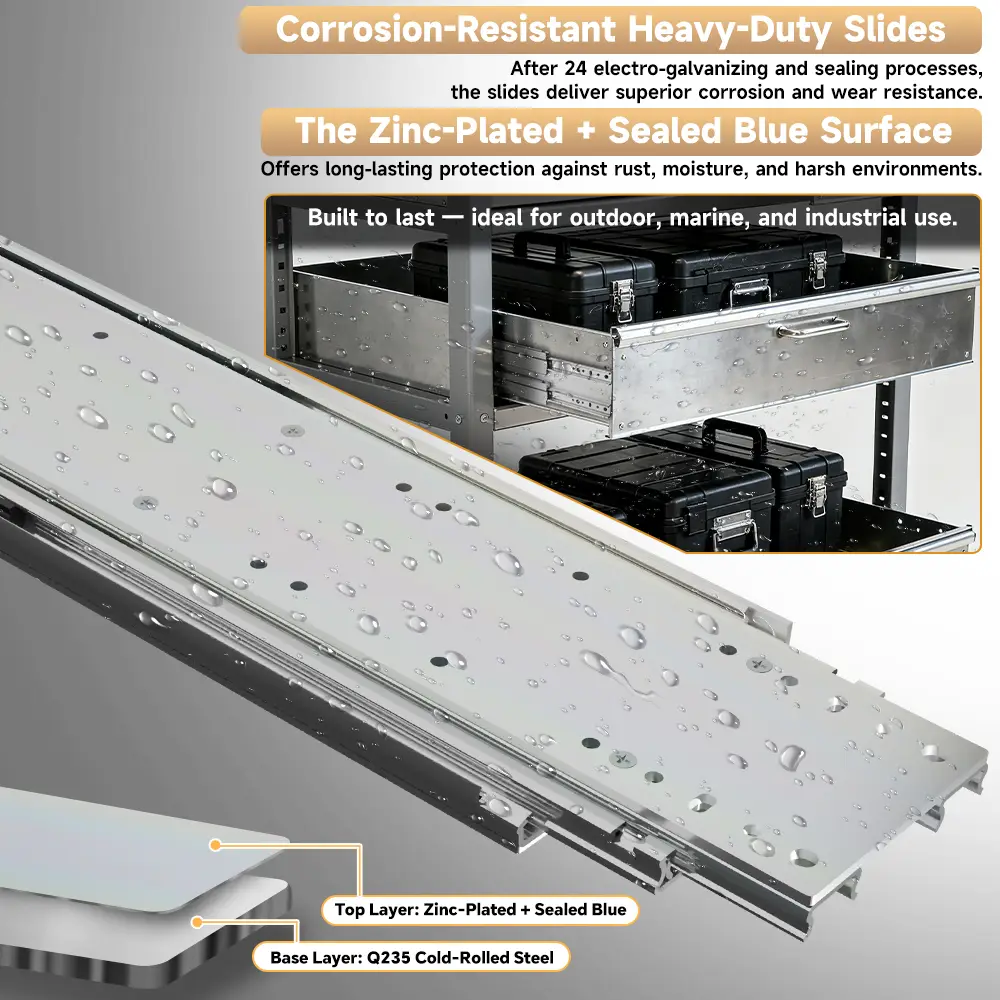

The surface is treated with a galvanized blue sealing process, isolating the slides from air and water exposure for superior corrosion and oxidation resistance.
Key Features
-

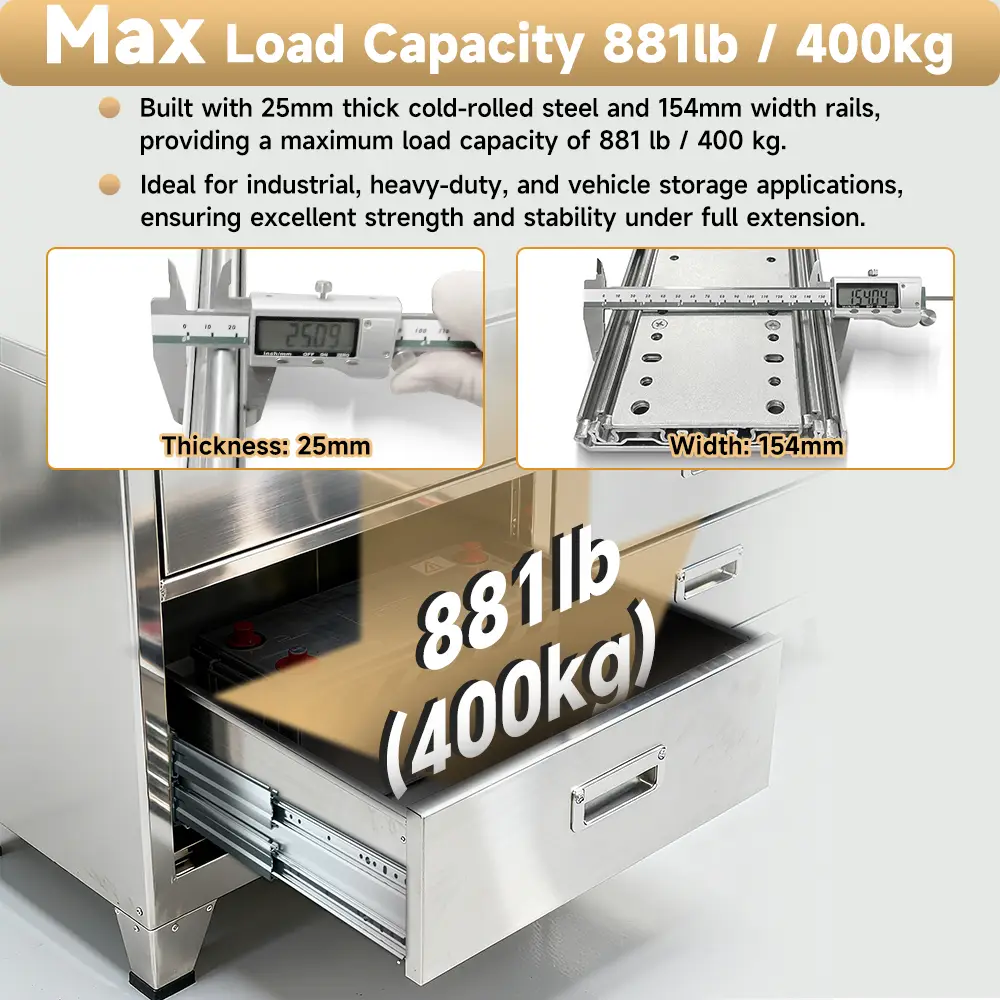

High Load Capacity: Supports up to 770 lb (350 kg) for heavy-duty and industrial applications.
-

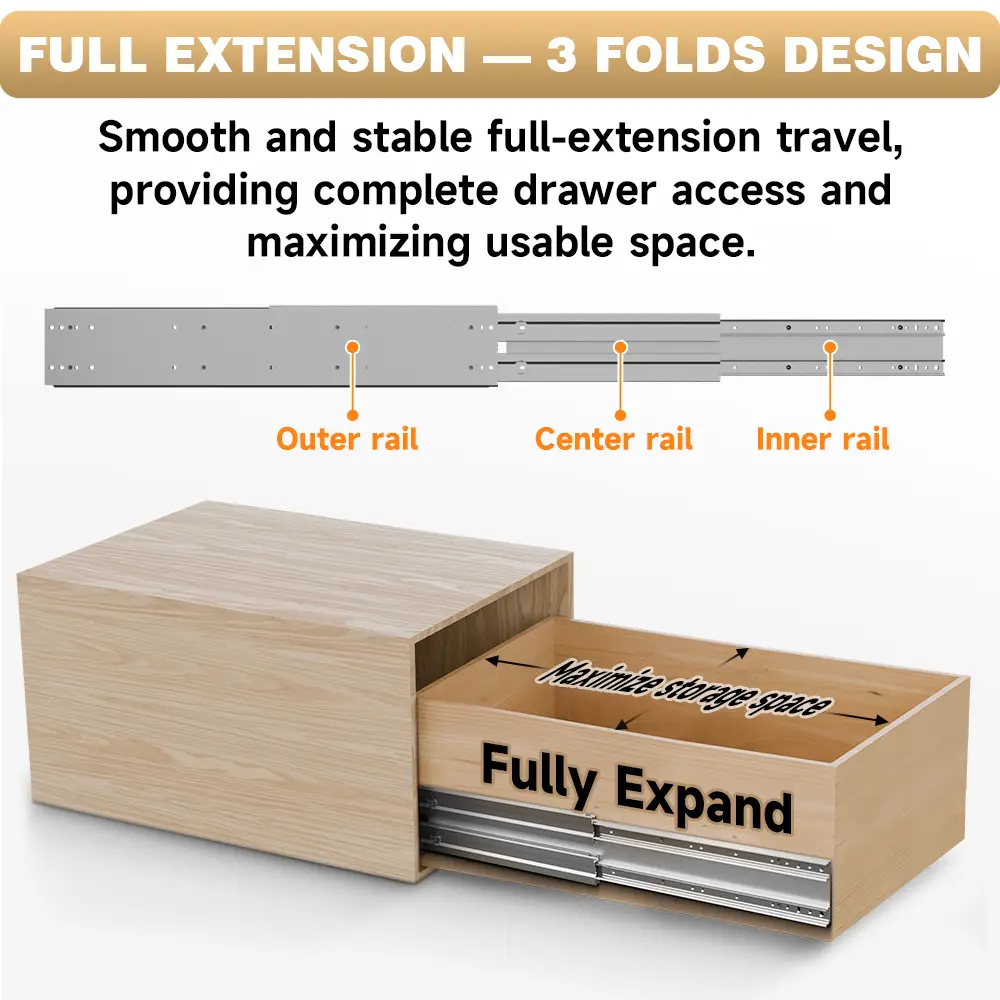

Full Extension Design: Support access to the whole space, and the drawers can be pulled out completely for easy storage of items. Four slides (two on each side) work together to effectively prevent the drawer from shaking, tilting, or jamming under load.
-
Superior Corrosion Resistance: Designed for long-term durability, the slides are protected by a robust 5µm anti-corrosion coating (e-coating & zinc electroplating). They withstand 48-hour salt spray tests and operate reliably in temperatures from -15℃ to 50℃, guaranteeing a long service life.
-
Durable & Rust-Resistant: Galvanized blue sealing treatment enhances anti-corrosion and anti-oxidation.
Installation Guide
-

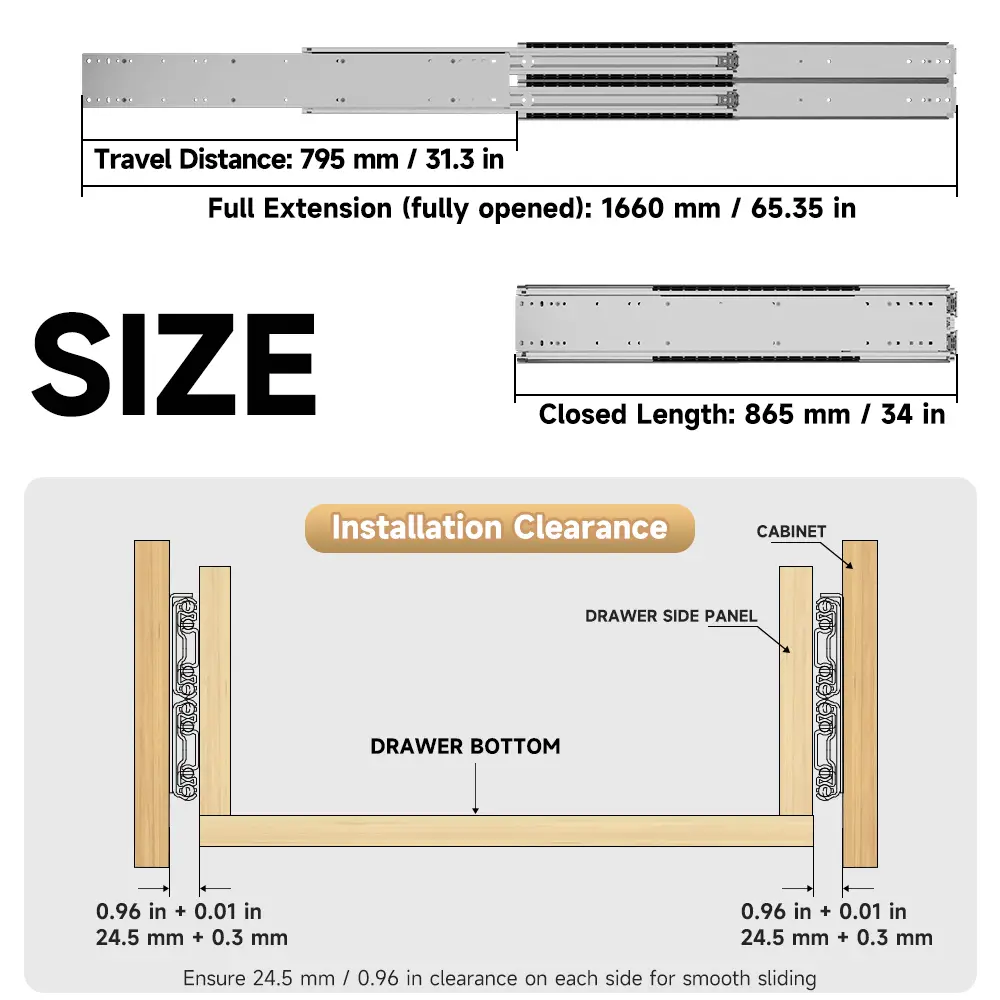

Maintain Parallel Alignment: Keep both slides parallel during installation to ensure smooth operation.
-
Mounting Screws: Not included; purchase M6 screws based on your installation scenario.
-
Safety Notice: Slides cannot be disassembled to ensure user safety. Locking mechanism only works when fully closed or fully opened.

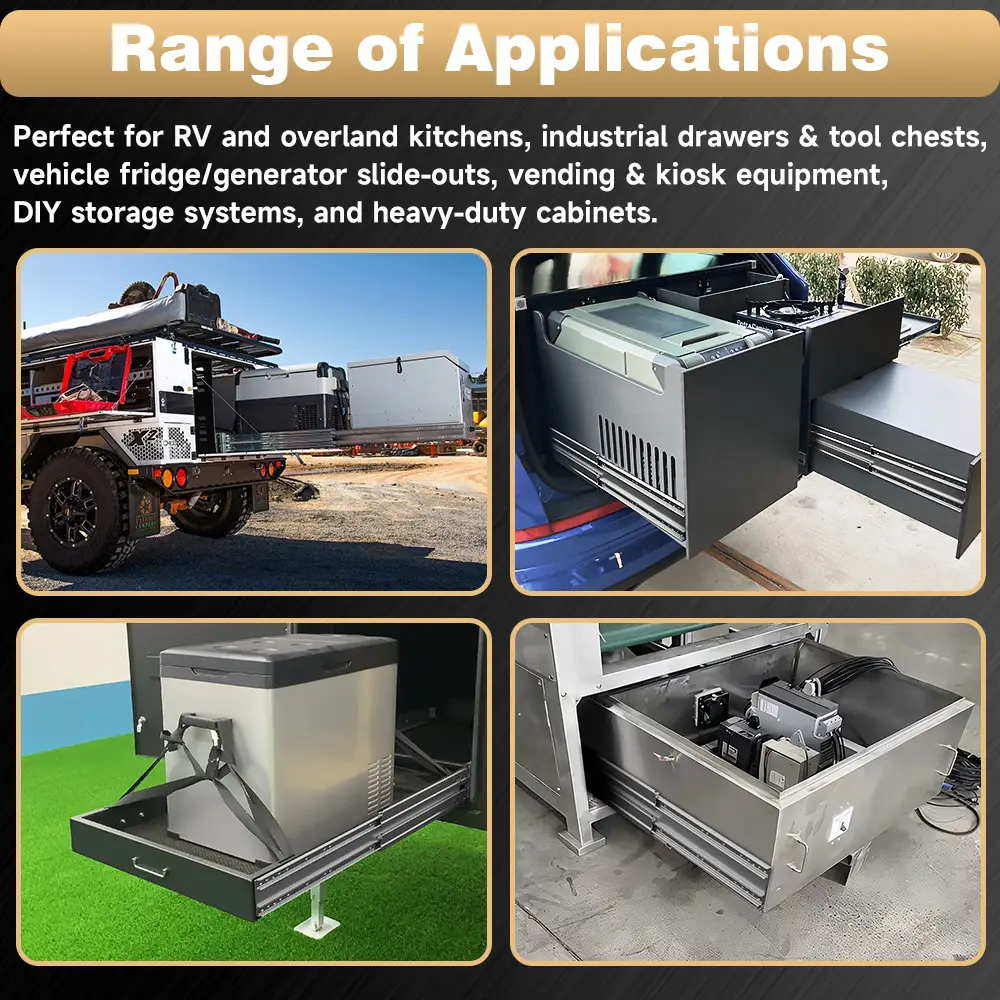

Applications
-
Workshops, Kitchens
-
Industrial equipment and mechanical drawers
-
Heavy-duty tool cabinets and shelving
-
RVs, trucks
Typical applications
AOLISHENG positioned as a high-end quality hardware supply brand, set research and development, production, export, service in one. AOLISHENG industrial heavy-duty slide market share of the world's first.
Widely used in: heavy industry, fire trucks, ships, precision machinery and other fields, won the customer's The unanimous praise throughout North America, Europe, Japan, South Korea and more than 80 countries around the world.
